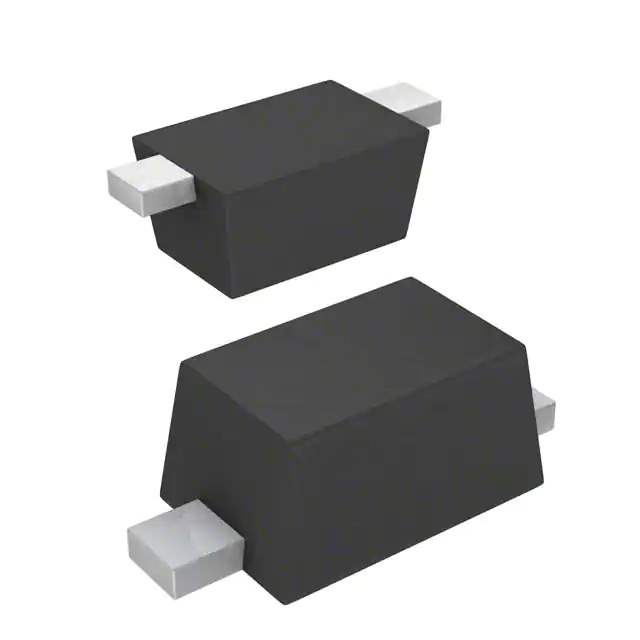

MADP-007433-12790T Real Image
Same model may have multiple batches, images only for reference.

MADP-007433-12790T

Part No MADP-007433-12790T
Manufacturer M/A-Com Technology Solutions
Catalog RF Diodes
Description DIODE,PIN,PLASTIC
Datasheet
MADP-007433-12790T Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - RF Diodes
Mfr M/A-Com Technology Solutions
Series SMPP
Package Tape & Reel
Product Status Active
Diode Type PIN - Single
Voltage - Peak Reverse (Max) 75V
Current - Max 150 mA
Capacitance @ Vr, F 0.35pF @ 20V, 1MHz
Resistance @ If, F 1.5Ohm @ 10mA, 100MHz
Power Dissipation (Max) 200 mW
Temperature Range - Operating 175°C (TJ)
Package / Case SC-79, SOD-523
Supplier Device Package SC-79
Base Product Number MADP-007433
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 207590-MADP-007433-12790T
Ultra Librarian 3D Model Ultra Librarian MADP-007433-12790T CAD Model

Description

The MADP-007433-12790T is a PIN diode manufactured by M/A-Com Technology Solutions.

  • Product Category: Discrete Semiconductor Products
  • Application: RF diode
  • Maximum Current: 150mA
  • Peak Reverse Voltage: 75V
  • Capacitance: 0.35pF @ 20V and 1MHz
  • Power Dissipation: 200mW
  • Resistance: 1.5Ohm @ 10mA and 100MHz
  • Package: SC-79, SOD-523
  • Operating Temperature: Up to 175°C
