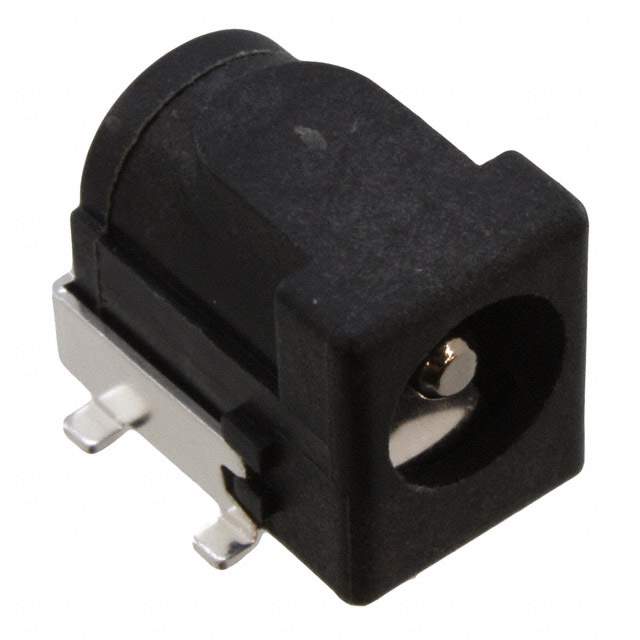

PJ-002BH-SMT-TR

Part No PJ-002BH-SMT-TR
Manufacturer CUI Inc.
Catalog Barrel - Power Connectors
Description CONN PWR JACK 2.5X5.5MM SOLDER
Datasheet
PJ-002BH-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer CUI Inc.
Packaging Bulk
Status Active
Connector Type Jack
Gender Male
Industry Recognized Mating Diameter 2.50mm ID (0.098"), 5.50mm OD (0.217")
Actual Diameter 0.098" (2.50mm ID), 0.256" (6.50mm OD)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Surface Mount, Right Angle
Termination Solder
Features Board Guide, Solder Retention
Voltage Rating 24VDC
Current Rating 5A
Mating Length/Depth 0.350" (8.90mm)
Contact Material - Plating Silver
Temperature Range - Operating -25°C to 85°C
Housing Material Polyamide (PA6T), Nylon 6T
Body Color Black
Material Flammability Rating UL94 V-0
Win Source Part Number 1089299-PJ-002BH-SMT-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PJ-002BH-SMT-TR CAD Model

Description

The CUI Inc. PJ-002BH-SMT-TR is a high-quality jack connector that is widely used in electronic circuits.

  • Voltage Rating: 24VDC
  • Current Rating: 5A
  • Design: Right-Angle Surface Mount
  • Housing Material: Polyamide
  • Configuration: 2 Conductors, 3 Contacts
