Same model may have multiple batches, images only for reference.

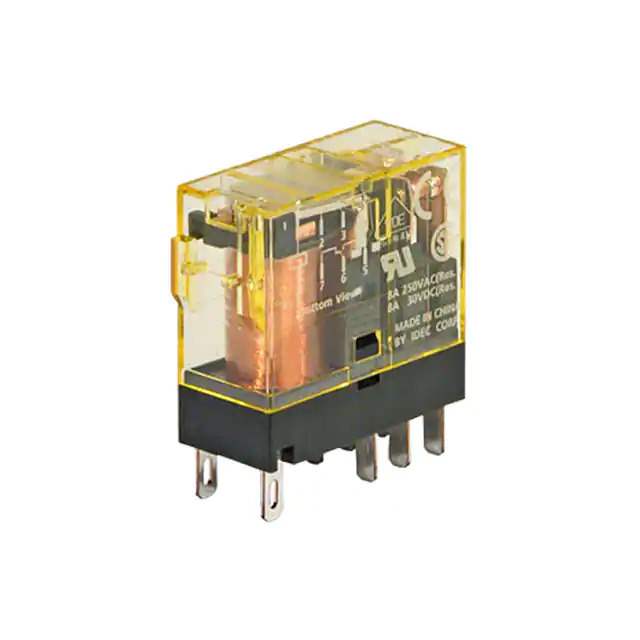

RJ2S-CLD-D24 Real Image
Same model may have multiple batches, images only for reference.

RJ2S-CLD-D24

Part No RJ2S-CLD-D24
Manufacturer IDEC
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPDT 8A 24V / General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable
Datasheet
RJ2S-CLD-D24 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr IDEC
Series RJ
Package Bulk
Product Status Active
Mounting Type Socketable
Coil Voltage 24VDC
Contact Form DPDT (2 Form C)
Contact Rating (Current) 8 A
Switching Voltage 250VAC - Nom
Coil Current 25.7 mA
Coil Type Non Latching
Features Diode, Lighted Indicator
Termination Style Plug In
Must Operate Voltage 16.8 VDC
Must Release Voltage 2.4 VDC
Operate Time 20 ms
Release Time 20 ms
Temperature Range - Operating -40°C ~ 70°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 1.08 kOhms
Base Product Number RJ2S
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0050
California Prop 65 Warning Information
Win Source Part Number 891730-RJ2S-CLD-D24
Ultra Librarian 3D Model Ultra Librarian RJ2S-CLD-D24 CAD Model

Description

The 891730-RJ2S-CLD-D24 is a power relay manufactured by IDEC.

  • Series: RJ
  • Termination Style: Plug-in
  • Features: Diode and lighted indicator
  • Contact Form: DPDT (2 Form C)
  • Contact Material: Silver nickel (AgNi)
  • Coil Resistance: 1.08 kOhms
  • Coil Current: 25.7 mA
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Relay Type: General purpose
  • Coil Type: Non-latching
  • Coil Voltage: 24VDC
  • Contact Rating: 8A
  • Switching Voltage: 250VAC
  • Socketable: Yes
  • Operating Temperature: -40°C to 70°C
  • Manufacturer: IDEC
