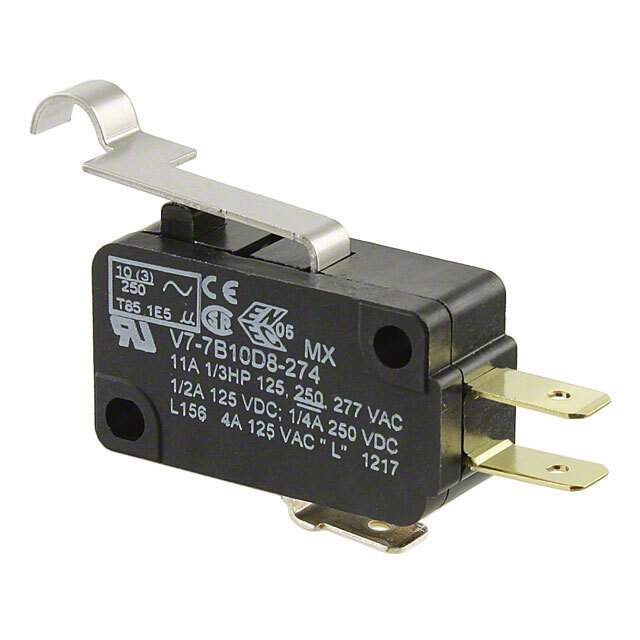

V7-7B10D8-274 Real Image
Same model may have multiple batches, images only for reference.

V7-7B10D8-274

Part No V7-7B10D8-274
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 11A 125V / Switch SPDT Chassis Mount
Datasheet
V7-7B10D8-274 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series V7
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 11A (AC), 500mA (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 141gf
Release Force 28gf
Pretravel 0.110" (2.8mm)
Differential Travel 0.032" (0.81mm)
Overtravel 0.075" (1.9mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.730" (18.5mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number V7-7
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-5295,V7-7B10D8-274-ND,V77B10D8274
Standard Package 100
Win Source Part Number 1024116-V7-7B10D8-274
Ultra Librarian 3D Model Ultra Librarian V7-7B10D8-274 CAD Model

Description

The Honeywell Sensing and Productivity Solutions V7-7B10D8-274 is a SPDT (Single Pole Double Throw) switch that has a quick connect termination style of 0.187 inches (4.7mm). Bold the product name, V7-7B10D8-274 and manufacturer, Honeywell Sensing and Productivity Solutions

  • Switch Type: SPDT
  • Termination Style: 0.187 inches (4.7mm) Quick Connect
  • Voltage Rating: 125V AC/DC
  • Current Rating (AC): 11A
  • Current Rating (DC): 500mA
  • Actuator Type: Simulated Roller Lever
  • Operating Force: 141gf
  • Electrical Life: 100,000 cycles
  • Mechanical Life: 10,000,000 cycles
  • Pretravel: 0.110 inches (2.8mm)
  • Differential Travel: 0.032 inches (0.81mm)
  • Overtravel: 0.075 inches (1.9mm)
  • Operating Position: 0.730 inches (18.5mm)
  • Mounting Type: Chassis Mount
  • Temperature Range: -40°C to 85°C
  • RoHS: Compliant
