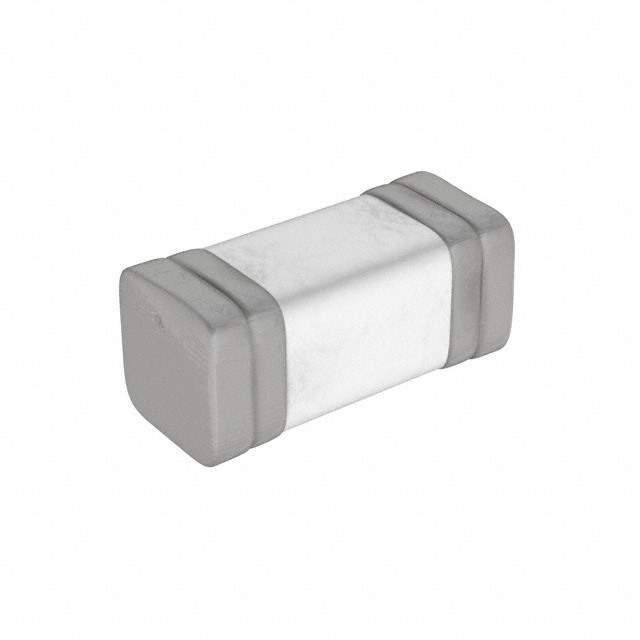

TR2/6125FF3-R Real Image
Same model may have multiple batches, images only for reference.

TR2/6125FF3-R

Part No TR2/6125FF3-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MOUNT 3A 125VAC 72VDC / Fuse Chip Fast Acting 3A 125V SMD Solder Pad 2410 T/R cULus
Datasheet
TR2/6125FF3-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series 6125FF
Packaging Reel package
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 3A
Voltage Rating - AC 125V
Voltage Rating - DC 72V
Response Time Fast
Package 2410 (6125 Metric)
Mounting SMD
Breaking Capacity @ Rated Voltage 50A
Melting I2t 6.24
Approvals cULus
Operating Temperature Range -55°C ~ 125°C
Dimension 0.240" L x 0.107" W x 0.107" H (6.10mm x 2.72mm x 2.72mm)
Resistance 0.035 Ohm
Win Source Part Number 798346-TR2/6125FF3-R
Popularity Medium
Supply and Demand Status Balance
Family Name 6125FF
ECCN EAR99
Country of Origin China
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian TR2/6125FF3-R CAD Model

Description

The 798346-TR2/6125FF3-R fuse is manufactured by Eaton.

  • Current Rating: 3A
  • Voltage Rating: 125V AC, 72V DC
  • Response Time: Fast
  • Breaking Capacity: 50A @ Rated Voltage
  • Mounting: SMD
  • Approvals: cULus
  • Operating Temperature Range: -55°C to 125°C
  • Nominal Melting - I2t: 6.24
  • Resistance: 0.035 Ohm
  • Family: 6125FF
  • Application: Circuit Protection
  • Supply and Demand Status: Balanced
  • Packaging: Reel
