Same model may have multiple batches, images only for reference.

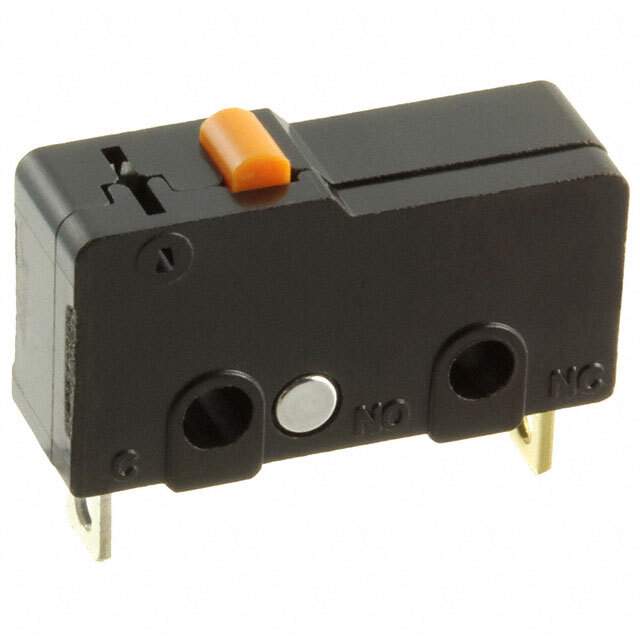

SS-5-2 Real Image
Same model may have multiple batches, images only for reference.

SS-5-2

Part No SS-5-2
Manufacturer Omron
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NC 5A 125V
Datasheet
SS-5-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Omron Electronics Inc-EMC Div
Packaging Bulk
Status Active
Circuit SPST-NC
Switch Function On-Mom
Current Rating 5A (AC), 4A (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 30V
Actuator Type Round (Pin Plunger)
Mounting Chassis Mount
Termination Style Solder Lug
Ingress Protection IP40
Operating Force, Torque 150gf
Release Force 25gf
Pretravel 0.020" (0.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.020" (0.5mm)
Operating Position 0.330" (8.4mm)
Mechanical Life 30,000,000 Cycles
Electrical Life 200,000 Cycles
Temperature Range - Operating -25°C to 85°C
Win Source Part Number 1102178-SS-5-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SS-5-2 CAD Model

Description

The supply and demand status of this component is balanced. This Omron product is a SPST-NC switch that has a current rating of 5A (AC) and 4A (DC) and a voltage rating of 125V (AC) and 30V (DC).

  • Switch Type: SPST-NC
  • Current Rating: 5A (AC), 4A (DC)
  • Voltage Rating: 125V (AC), 30V (DC)
  • Ingress Protection: IP40
  • Actuator Type: Round (Pin Plunger)
  • Mechanical Life: 30,000,000 cycles
  • Electrical Life: 200,000 cycles
  • Operating Force: 150gf
  • Release Force: 25gf
  • Applications: Home Appliances, Office Machines, Industrial Equipment
