Same model may have multiple batches, images only for reference.

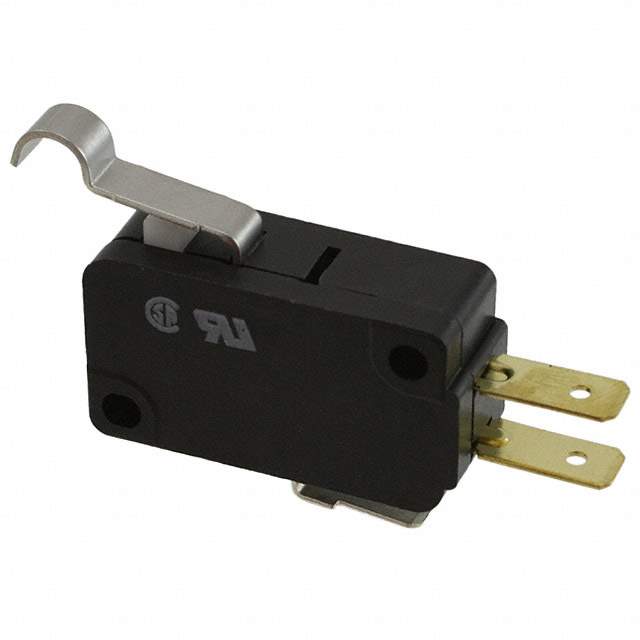

V7-5F17D8-289 Real Image
Same model may have multiple batches, images only for reference.

V7-5F17D8-289

Part No V7-5F17D8-289
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 3A 125V / Switch SPDT Chassis Mount
Datasheet
V7-5F17D8-289 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series V7
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 3A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Simulated Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 8.000gf
Pretravel 0.125" (3.2mm)
Differential Travel 0.028" (0.7mm)
Overtravel 0.068" (1.73mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.730" (18.5mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number V7-5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 2266-V7-5F17D8-289,V75F17D8289,480-5283,V7-5F17D8-289-ND
Standard Package 100
Win Source Part Number 1013047-V7-5F17D8-289
Ultra Librarian 3D Model Ultra Librarian V7-5F17D8-289 CAD Model

Description

The V7-5F17D8-289 limit switch is a reliable and high-quality switch that is perfect for use in a variety of applications from Honeywell Sensing and Productivity Solutions.

  • Current Rating: 3A (AC)
  • Voltage Rating: 125V (AC)
  • Switch Function: On-Mom
  • Actuator Type: Lever, Simulated Roller
  • Mechanical Life: 10,000,000 cycles
