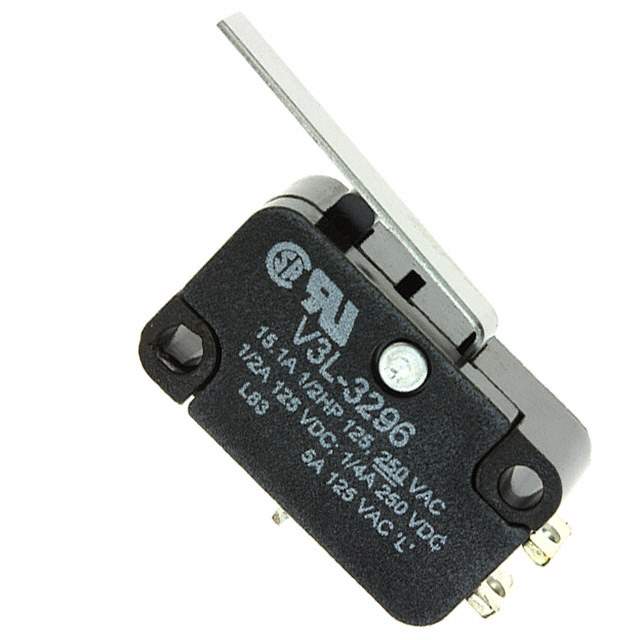

V3L-3296 Real Image
Same model may have multiple batches, images only for reference.

V3L-3296

Part No V3L-3296
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 15A 125V / Switch Snap Action N.O./N.C. SPDT Lever Quick Connect 15.1A 250VAC 250VDC 372.85VA 0.86N Screw Mount
Datasheet
V3L-3296 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Honeywell Sensing and Productivity Solutions
Series V3L
Packaging Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating 15A (AC), 500mA (DC)
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Actuator Type Lever, Straight
Mounting Chassis Mount
Termination Style Solder Lug
Operating Force, Torque 88gf
Release Force 6gf
Pretravel 0.120" (3.0mm)
Differential Travel 0.032" (0.81mm)
Overtravel 0.090" (2.3mm)
Operating Position 0.600" (15.2mm)
Win Source Part Number 798988-V3L-3296
Popularity Medium
Supply and Demand Status Limited
Family Name V3L-3296
Introduction Date July 29, 2000
ECCN EAR99
Country of Origin Mexico
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian V3L-3296 CAD Model

Description

The V3L-3296 is a chassis mount switch from Honeywell Sensing and Productivity Solutions.

  • Circuit: SPDT
  • Current Rating: 15A (AC), 500mA (DC)
  • Voltage Rating: 125V (AC/DC)
  • Actuator: Lever
  • Operation: On-Mom
  • Mechanical Life: 100,000 cycles
  • Differential Travel: 0.032" (0.81mm)
  • Overtravel: 0.090" (2.3mm)
  • Compliance: RoHS
