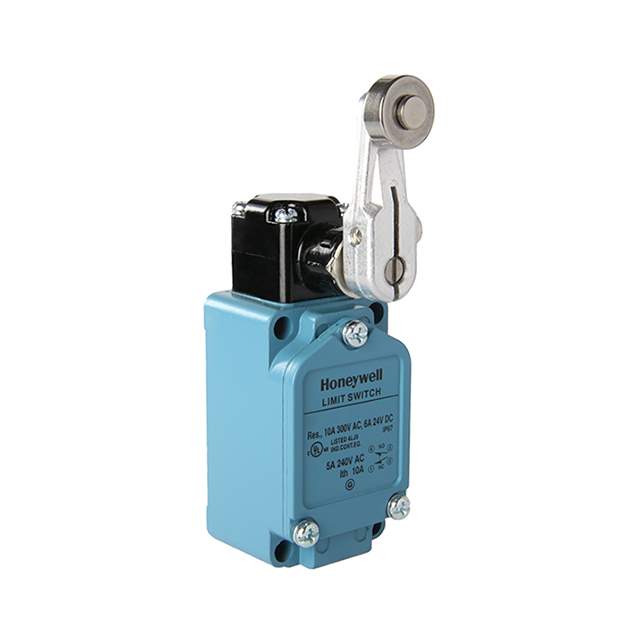

SZL-WLC-A-N Real Image
Same model may have multiple batches, images only for reference.

SZL-WLC-A-N

Part No SZL-WLC-A-N
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 10A 125V / Switch SPDT (DB/DM) Chassis Mount
Datasheet
SZL-WLC-A-N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SZL-WL
Package Bulk
Circuit SPDT (DB/DM)
Switch Function On-Mom
Current Rating (Amps) 10A (AC), 6A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Side Rotary, Roller
Mounting Type Chassis Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 34gfm
Pretravel 30°
Differential Travel 16°
Overtravel 60°
Temperature Range - Operating -10°C ~ 80°C
Operating Position 30°
Electrical Life 750,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number SZL-WL
Other Names 480-6688
Standard Package 5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233635-SZL-WLC-A-N
Ultra Librarian 3D Model Ultra Librarian SZL-WLC-A-N CAD Model

Description

The SZL-WLC-A-N is a limit switch designed by Honeywell Sensing and Productivity Solutions.

  • Circuit: SPDT (DB/DM)
  • Switch Function: On-Mom
  • Actuator Type: Side rotary
  • Mechanical Life: 10,000,000 cycles
  • Voltage Rating: 125 V (AC) and 30 V (DC)
  • Mounting: Chassis mount
  • Ingress Protection: IP67 (Dust tight and waterproof)
