Same model may have multiple batches, images only for reference.

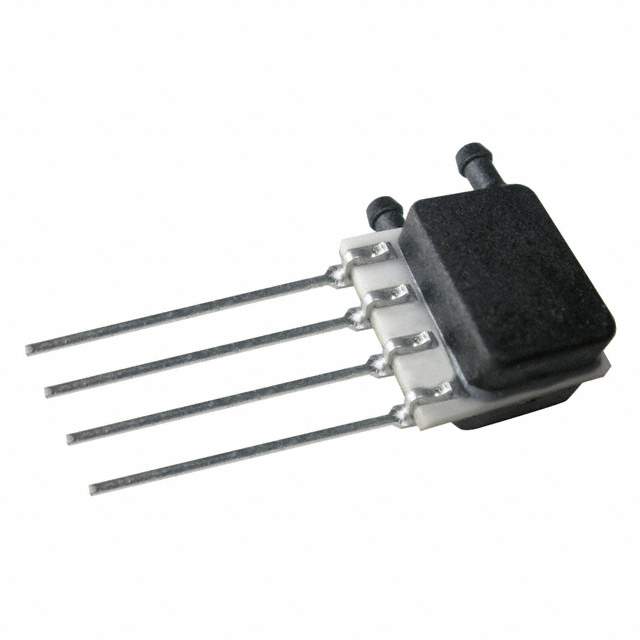

SSCSRRN015PGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSRRN015PGAA5

Part No SSCSRRN015PGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI GAUG 5V SIP / Pressure Sensor 15PSI (103.42kPa) Vented Gauge Male - 0.08" (1.92mm) Tube, Dual 0.5 V ~ 4.5 V 4-SIP, Dual Ports, Same Side
Datasheet
SSCSRRN015PGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 15PSI (103.42kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.08" (1.92mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP, Dual Ports, Same Side
Supplier Device Package 4-SIP
Base Product Number SSCSRRN
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234435-SSCSRRN015PGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSRRN015PGAA5 CAD Model

Description

The TruStability SSC pressure sensor is a high-performance sensor that offers a vented gauge pressure type and a maximum pressure of 30PSI.

  • Pressure Type: Vented Gauge
  • Maximum Pressure: 30PSI
  • Output: Amplified output, temperature compensation
  • Output Type: Analog voltage
  • Output Range: 0.5V to 4.5V
  • Voltage Supply: 4.75V to 5.25V
  • Application: Board mount
  • Package: 4-SIP, dual ports, same side
  • Port Style: Male 0.08" (1.92mm) tube
  • Operating Temperature: -40°C to 85°C
  • Accuracy: ±0.25%
