Same model may have multiple batches, images only for reference.

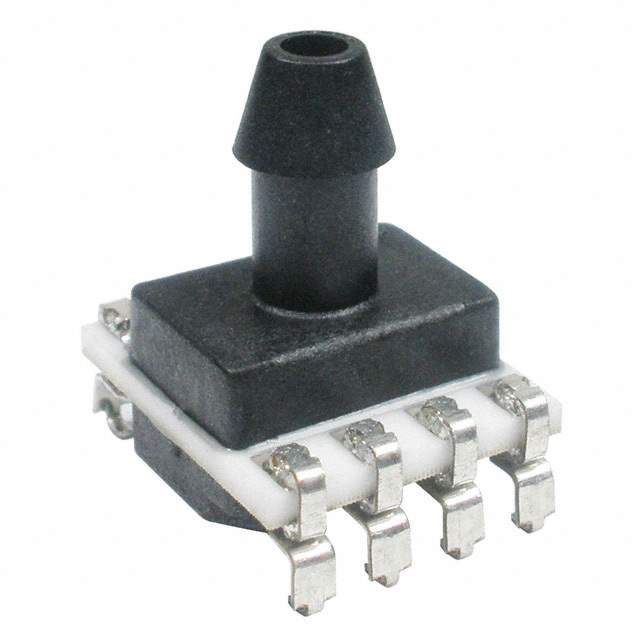

SSCMANN060PG2A3 Real Image
Same model may have multiple batches, images only for reference.

SSCMANN060PG2A3

Part No SSCMANN060PG2A3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS 60PSI GAUGE 3.3V SM / Pressure Sensor 60PSI (413.69kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 12 b 8-SMD, J-Lead, Top Port
Datasheet
SSCMANN060PG2A3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 60PSI (413.69kPa)
Output Type I2C
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 120PSI (827.37kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMT
Base Product Number SSCMANN
Other Names 480-5532,SSCMANN060PG2A3
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234324-SSCMANN060PG2A3
Ultra Librarian 3D Model Ultra Librarian SSCMANN060PG2A3 CAD Model

Description

The Honeywell Sensing and Productivity Solutions 1087704 is a pressure sensor/transducer with a TruStability® SSC series.

  • Port Size: male - 0.19" (4.93mm) Tube
  • Port Style: barbed
  • Maximum Operating Pressure: 120PSI (827.37kPa)
  • Voltage Supply: 3V to 3.6V
  • Win Source Part Number: 1234324-SSCMANN060PG2A3
