Same model may have multiple batches, images only for reference.

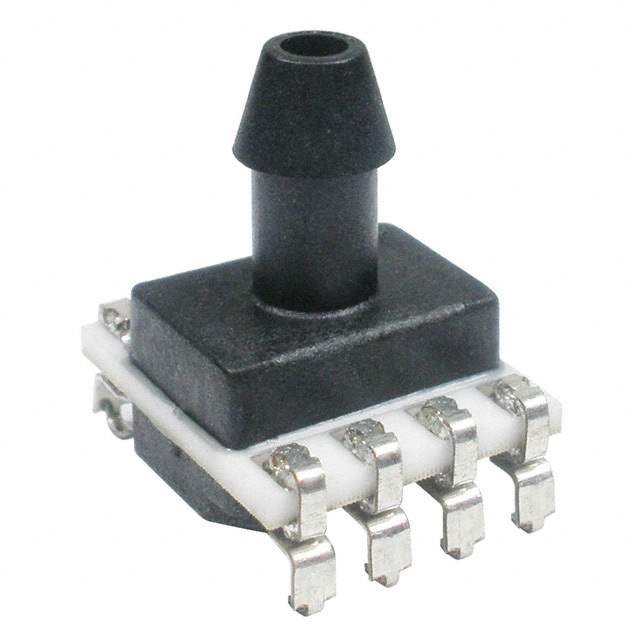

SSCMANN001PGSA5 Real Image
Same model may have multiple batches, images only for reference.

SSCMANN001PGSA5

Part No SSCMANN001PGSA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 5PSI GAUG 5V SMD / Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.19" (4.93mm) Tube 12 b 8-SMD, J-Lead, Top Port
Datasheet
SSCMANN001PGSA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1PSI (6.89kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Size Male - 0.19" (4.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style SMD (SMT) Tab
Maximum Pressure 10PSI (68.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 8-SMD, J-Lead, Top Port
Supplier Device Package 8-SMT
Base Product Number SSCMANN
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234397-SSCMANN001PGSA5
Ultra Librarian 3D Model Ultra Librarian SSCMANN001PGSA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions TruStability SSC pressure sensor is a high-quality electronic component that is ideal for use in pressure sensing applications.

  • Pressure Range: 1PSI to 10PSI
  • Accuracy: ±0.25%
  • Output: Amplified output
  • Feature: Temperature-compensated
  • Voltage Supply Range: 4.75V to 5.25V
  • Temperature-resistant: Yes
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: 8-SMD, J-Lead, Top Port package
  • Status: Obsolete product that is no longer manufactured
