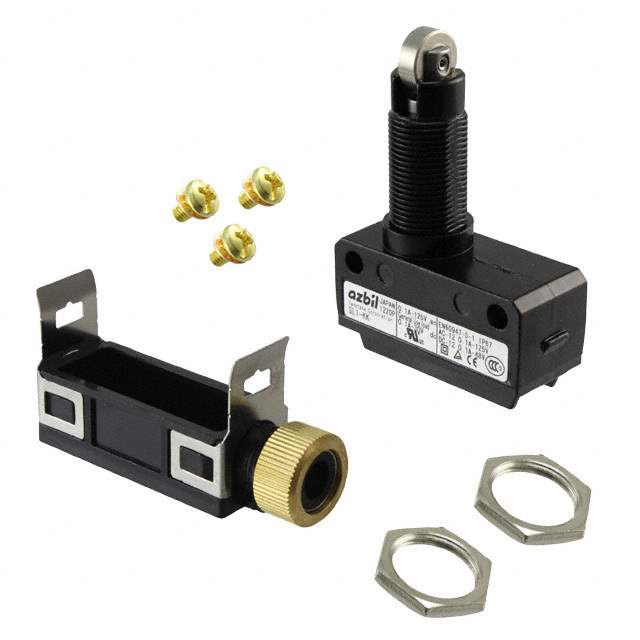

SL1-KK Real Image
Same model may have multiple batches, images only for reference.

SL1-KK

Part No SL1-KK
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPDT 100MA 125V / Switch SPDT Panel Mount
Datasheet
SL1-KK Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SL1
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 100mA (AC/DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 30 V
Actuator Type Cross Roller Plunger
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 1200gf
Release Force 500gf
Pretravel 0.060" (1.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.118" (3.0mm)
Temperature Range - Operating -10°C ~ 70°C
Operating Position 1.630" (41.4mm)
Base Product Number SL1
Other Names 2266-SL1-KK,SL1-KK,SL1KK,480-5185
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9055
Win Source Part Number 1233666-SL1-KK
Ultra Librarian 3D Model Ultra Librarian SL1-KK CAD Model

Description

The SL1 series from Honeywell Sensing and Productivity Solutions is a reliable and durable solution for limit switches.

  • Actuator Type: Cross Roller Plunger
  • Circuit: SPDT
  • Operating Force: 1200gf
  • Release Force: 500gf
  • Pretravel: 0.060" (1.5mm)
  • Differential Travel: 0.004" (0.1mm)
  • Overtravel: 0.118" (3.0mm)
  • Operating Position: 1.630" (41.4mm)
  • Mounting Type: Panel Mount
  • Temperature Range: -10°C ~ 70°C
  • ECCN: EAR99
  • HTSUS Code: 8536.50.
  • Ingress Protection: IP67
  • Voltage Rating: 125 V AC and 30 V DC
