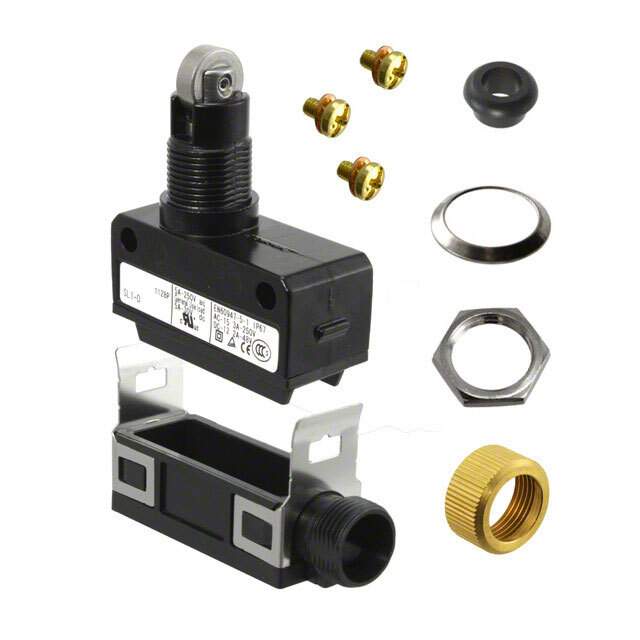

SL1-K Real Image
Same model may have multiple batches, images only for reference.

SL1-K

Part No SL1-K
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 5A 125V / Switch SPDT Panel Mount
Datasheet
SL1-K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SL1
Package Bulk
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Cross Roller Plunger
Mounting Type Panel Mount
Termination Style Screw Terminal
Ingress Protection IP67 - Dust Tight, Waterproof
Operating Force 1200gf
Release Force 500gf
Pretravel 0.060" (1.5mm)
Differential Travel 0.004" (0.1mm)
Overtravel 0.118" (3.0mm)
Temperature Range - Operating -10°C ~ 70°C
Operating Position 1.630" (41.4mm)
Base Product Number SL1
Other Names SL1-K,480-7011,2266-SL1-K
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Win Source Part Number 1233663-SL1-K
Ultra Librarian 3D Model Ultra Librarian SL1-K CAD Model

Description

The SL1 series from Honeywell Sensing and Productivity Solutions offers a panel mount limit switch with a circuit configuration of SPDT and an operating force of 1200gf.

  • Mounting Type: Panel Mount
  • Circuit: SPDT
  • Operating Force: 1200gf
  • Voltage Rating: 125VAC
  • Actuator Type: Cross Roller Plunger
  • Pretravel: 0.060" (1.5mm)
  • Overtravel: 0.118" (3.0mm)
  • Temperature Range: -10°C ~ 70°C
  • Current Rating: 5A (AC)
  • Package: Bulk
