Same model may have multiple batches, images only for reference.

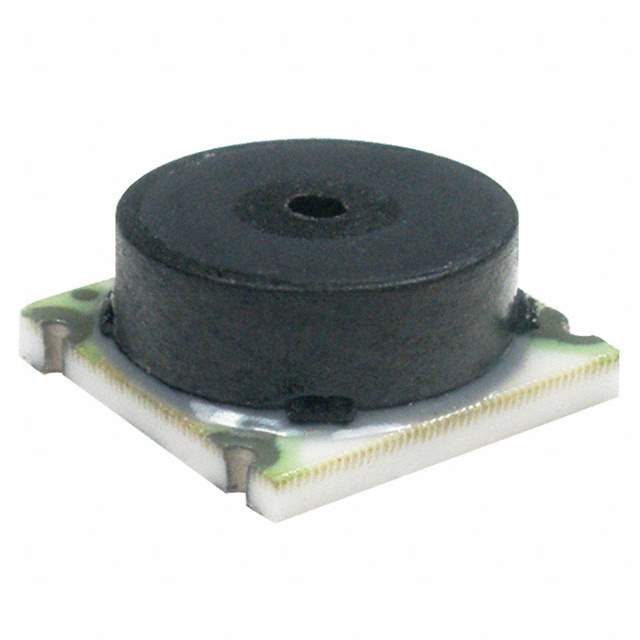

NBPLPNS005PGUNV Real Image
Same model may have multiple batches, images only for reference.

NBPLPNS005PGUNV

Part No NBPLPNS005PGUNV
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description BRD MNT PRESSURE SENSORS
Datasheet
NBPLPNS005PGUNV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Series NBP
Pressure Type Vented Gauge
Operating Pressure 5 PSI (34.47 kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV (5V)
Accuracy ±0.25%
Operating Supply Voltage 1.8 V ~ 12 V
Port Style No Port
Termination Style Surface Mount
Maximum Pressure 30 PSI (206.84 kPa)
Operating Temperature Range -40°C ~ 125°C
Package 6-SMD, No Lead, Top Port
Win Source Part Number 790545-NBPLPNS005PGUNV
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NBPLPNS005PGUNV CAD Model

Description

The Honeywell Sensing and Productivity Solutions NBP series surface mount pressure sensor is a highly accurate device capable of measuring vented gauge pressure up to 5 PSI.

  • Supply Voltage: 1.8V and 12V
  • Output Signal: 0mV to 75mV @ 5V
  • Termination Style: Surface mount
  • Package: 6-SMD, no lead
  • Termination: Top port
  • Accuracy: ±0.25%
  • Maximum Pressure: 30 PSI
