Same model may have multiple batches, images only for reference.

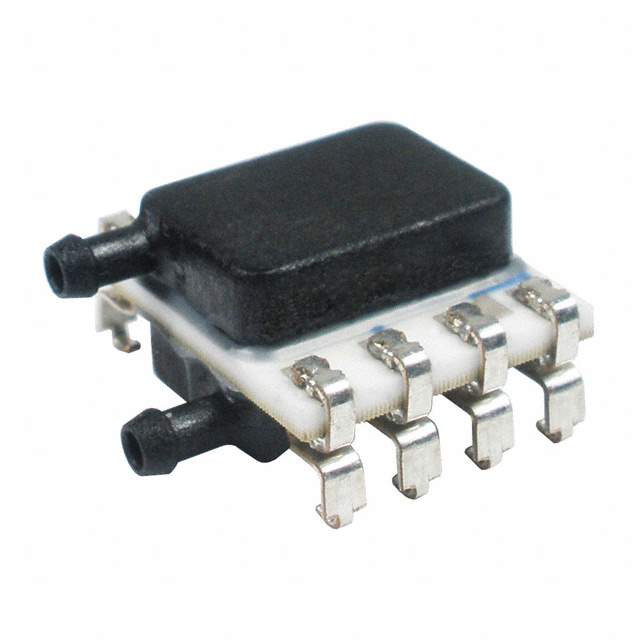

HSCMRRN001PDSA3 Real Image
Same model may have multiple batches, images only for reference.

HSCMRRN001PDSA3

Part No HSCMRRN001PDSA3
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 1PSI DIFF 3.3V SMT / Pressure Sensor ±1PSI (±6.89kPa) Differential Male - 0.08" (1.93mm) Tube, Dual 12 b 8-SMD, J-Lead, Dual Ports, Same Side
Datasheet
HSCMRRN001PDSA3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Honeywell Sensing and Productivity Solutions
Packaging Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure ±1PSI (±6.89kPa)
Output Type SPI
Output 12 b
Accuracy ±0.25%
Voltage - Supply 3V ~ 3.6V
Port Size Male - 0.08" (1.93mm) Tube, Dual
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style J Lead
Maximum Pressure ±10PSI (±68.95kPa)
Temperature Range - Operating -20°C ~ 85°C
Case / Package 8-SMD, J-Lead, Dual Ports, Same Side
Supplier Device Package 8-SMD
Base Product Number HSCMRRN
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 480-6611,HSCMRRN001PDSA3-ND
Standard Package 50
Win Source Part Number 1336559-HSCMRRN001PDSA3
Ultra Librarian 3D Model Ultra Librarian HSCMRRN001PDSA3 CAD Model

Description

The Honeywell Sensing and Productivity Solutions pressure sensor, HSCMRRN001PDSA3, is a board mount differential pressure sensor with a male dual barbed port style.

  • Output: Amplified
  • Compensation: Temperature
  • Output Type: SPI
  • Output Bits: 12-bit
  • Operating Pressure: ±1PSI (±6.89kPa)
  • Maximum Pressure: ±10PSI (±68.95kPa)
  • Voltage Supply: 3V to 3.6V
  • Accuracy: ±0.25%
  • Temperature Range: -20°C to 85°C
  • Package: 8-SMD with J-lead
  • Ports: Dual, Same Side
  • ECCN: EAR99
  • RoHS Compliant: true
