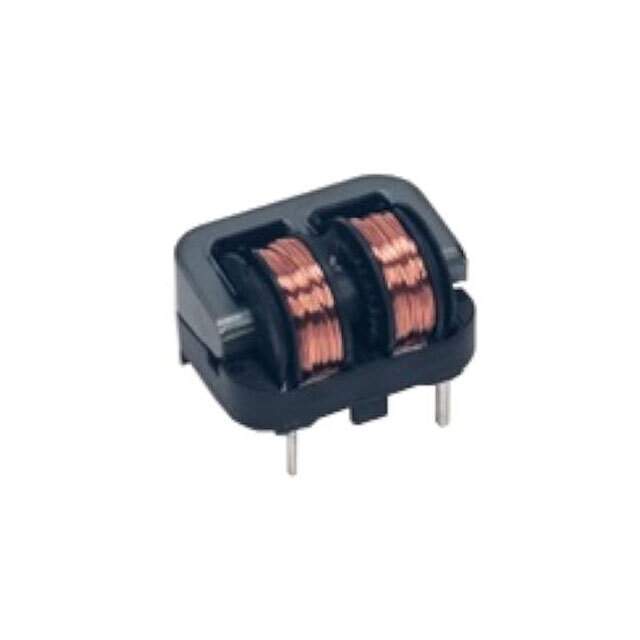

SSHB10H-R08194

Part No SSHB10H-R08194
Manufacturer Kemet
Catalog Common Mode Chokes
Datasheet
SSHB10H-R08194 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SSHB10H
Package Bulk
Number of Lines 2
Inductance @ Frequency 19.4 mH @ 10 kHz
Current Rating (Max) 800mA
DC Resistance (DCR) (Max) 640mOhm
Voltage Rating - AC 250V
Temperature Range - Operating -25°C ~ 120°C
Mounting Type Through Hole
Dimension 0.866" L x 0.669" W (22.00mm x 17.00mm)
Height (Max) 0.610" (15.50mm)
Package / Case Vertical, 4 PC Pin
Base Product Number SSHB10H
Other Names 399-17080,UALSB1R0819400
Standard Package 300
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276705-SSHB10H-R08194
Ultra Librarian 3D Model Ultra Librarian SSHB10H-R08194 CAD Model

Description

The SSHB10H-R08194 is a common mode choke from the SSHB10H series by KEMET.

  • Mounting: Through-hole
  • Package/Case: 4 PC pin, mounted vertically
  • Voltage Rating: 250V AC
  • Current Rating: 800mA
  • Inductance: 19.4mH @ 10kHz
  • DC Resistance (DCR): 640mOhm
  • Application: Filters, specifically common mode chokes
  • Height: 15.50mm
  • Dimension: 22.00mm x 17.00mm
  • Temperature Range: -25°C to 120°C
  • Standard Package: 300 units in bulk
  • REACH: Unaffected
  • ECCN: EAR99
