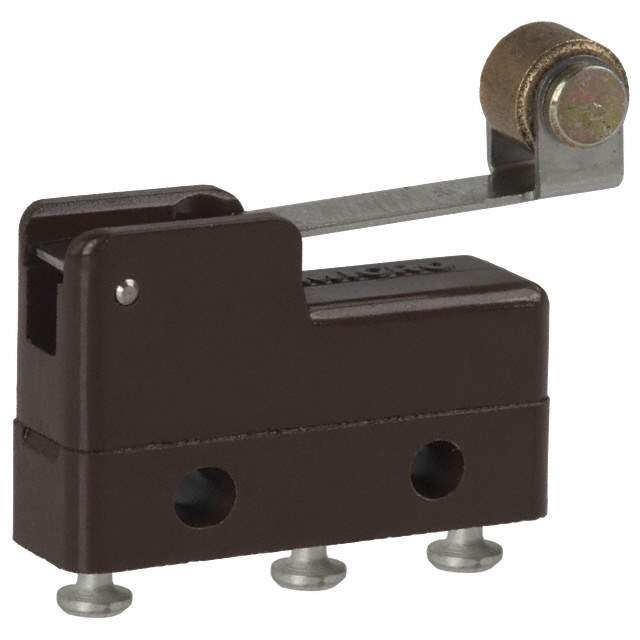

311SM706-T Real Image
Same model may have multiple batches, images only for reference.

311SM706-T

Part No 311SM706-T
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACTION SPDT 4A 250V / Switch SPDT Chassis Mount
Datasheet
311SM706-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SM
Package Tray
Circuit SPDT
Switch Function On-Mom
Current Rating (Amps) 4A (AC), 5A (DC)
Voltage Rating - AC 250 V
Voltage Rating - DC 30 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Solder Turret
Operating Force 16gf
Release Force 3.059gf
Pretravel 0.085" (2.16mm)
Differential Travel 0.013" (0.33mm)
Overtravel 0.018" (0.45mm)
Temperature Range - Operating -55°C ~ 125°C
Operating Position 0.560" (14.2mm)
Mechanical Life 10,000,000 Cycles
Base Product Number 311SM
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-2325,311SM706T
Standard Package 100
Win Source Part Number 1213076-311SM706-T
Ultra Librarian 3D Model Ultra Librarian 311SM706-T CAD Model

Description

The Honeywell 311SM706-T is a SPDT limit switch designed for use in applications that require precise and reliable switching.

  • Circuit: SPDT
  • Switch Function: On-Mom
  • Actuation: Lever/Roller
  • Operating Force: 16gf
  • Release Force: 3.059gf
  • Mechanical Life: 10,000,000 cycles
  • Operating Temperature: -55°C to 125°C
  • Package: Tray
  • Standard Package Quantity: 100
