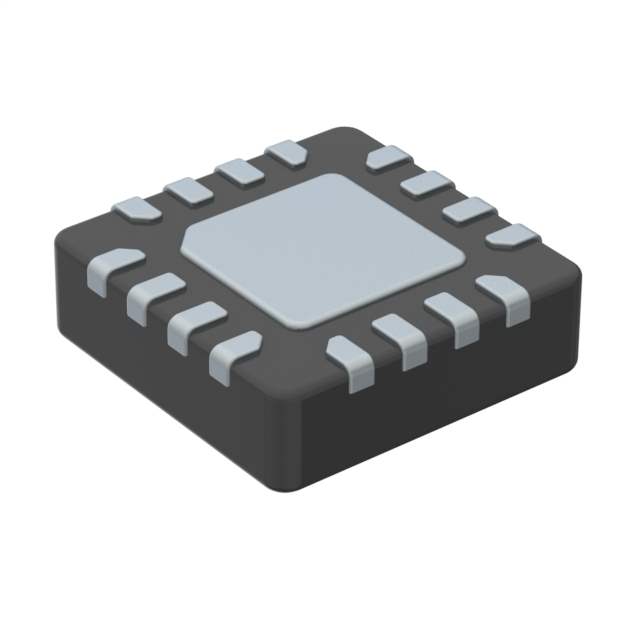

HMC455LP3TR Real Image
Same model may have multiple batches, images only for reference.

HMC455LP3TR

Part No HMC455LP3TR
Manufacturer Hittite
Catalog RF Amplifiers
Description IC AMP CDMA 1.7GHZ-2.5GHZ 16QFN / RF Amplifier IC CDMA, GSM, WCDMA 1.7GHz ~ 2.5GHz 16-QFN (3x3)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Amplifiers
Mfr Hittite
Package Bulk
Product Status Active
Frequency 1.7GHz ~ 2.5GHz
P1dB 27.5dBm
Gain 13.5dB
Noise Figure 7dB
RF Type CDMA, GSM, WCDMA
Voltage - Supply 5V
Current - Supply 150mA
Test Frequency 2.5GHz
Mounting Type Surface Mount
Package / Case 16-VFQFN Exposed Pad
Supplier Device Package 16-QFN (3x3)
Base Product Number HMC455
Standard Package 48 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.33.0001
Win Source Part Number 920423-HMC455LP3TR
Ultra Librarian 3D Model Ultra Librarian HMC455LP3TR CAD Model

Description

The 920423-HMC455LP3TR is an RF amplifier designed and manufactured by Hittite.

  • Series: HMC455
  • Suitable for: CDMA, GSM, and WCDMA applications
  • Frequency Range: 1.7GHz to 2.5GHz
  • Gain: 13.5dB
  • Noise Figure: 7dB
  • Supply Voltage: 5V
  • Current Consumption: 150mA
  • Package: Surface mount
  • Package / Case Size: 16-VFQFN exposed pad
  • Standard Package: 48 pieces
  • Industry Use: RF and wireless
  • Status: Active
