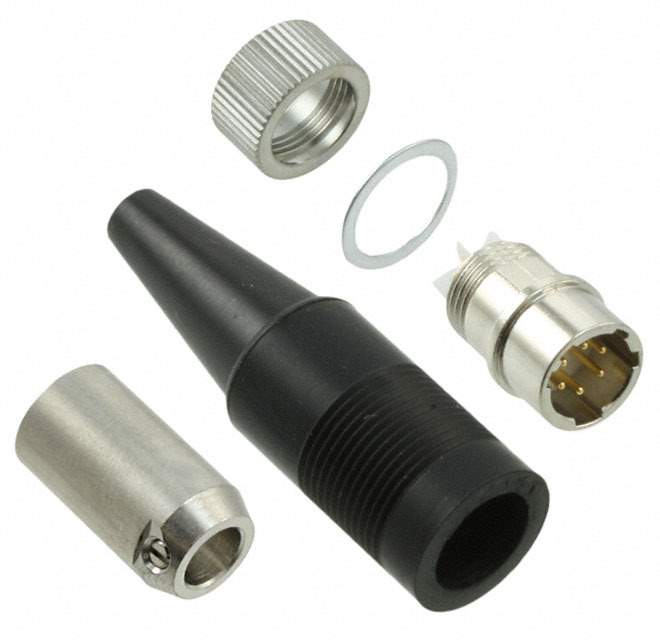

SR30-10PE-6P(74) Real Image
Same model may have multiple batches, images only for reference.

SR30-10PE-6P(74)

Part No SR30-10PE-6P(74)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors
Mfr Hirose Electric Co Ltd
Series SR30
Package Bulk
Connector Type Plug, Male Pins
Number of Positions 6
Shell Size - Insert 10
Mounting Type Free Hanging (In-Line)
Termination Solder Cup
Fastening Type Threaded
Orientation Keyed
Primary Material Metal
Shell Material Zinc Alloy
Shell Finish Nickel
Contact Finish - Mating Gold
Color Black, Silver
Features Backshell, Coupling Nut, Strain Relief
Shielding Unshielded
Current Rating (Amps) 1A
Voltage Rating 100VAC, 140VDC
Temperature Range - Operating -10°C ~ 60°C
Backshell Material, Plating Brass, Nickel
Contact Material Brass
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Insert Material Polyacetal
Applications Radio
Base Product Number SR30
Other Names HR1718,*SR30-10PE-6P(74),SR3010PE6P74,Q7393701,1030258774
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 1294210-SR30-10PE-6P(74)
Ultra Librarian 3D Model Ultra Librarian SR30-10PE-6P(74) CAD Model

Description

The Hirose Electric Co Ltd SR30 series is a circular connector with a plug, male pins and a solder cup termination.

  • Termination: Solder Cup
  • Fastening: Threaded
  • Features: Backshell, Coupling Nut, and Strain Relief
  • Shell Size - Insert: 10
  • Shell Material: Zinc Alloy
  • Shell Finish: Nickel
  • Insert Material: Polyacetal
  • Voltage Rating: 100VAC, 140VDC
  • Orientation: Keyed
  • Ingress Protection: -
  • Shielding: Unshielded
  • Standard Package: 20
  • Mounting Type: Free Hanging (In-Line)
  • Current Rating (amps): 1A
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 8.00μin (0.203μm)
  • Cable Opening: -
  • Temperature Range - Operating: -10°C ~ 60°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4020
  • Other Names: HR1718, *SR30-10PE-6P(74), SR3010PE6P74, Q7393701, and 1030258774
  • Base Product Number: SR30
  • Primary Material: Metal
