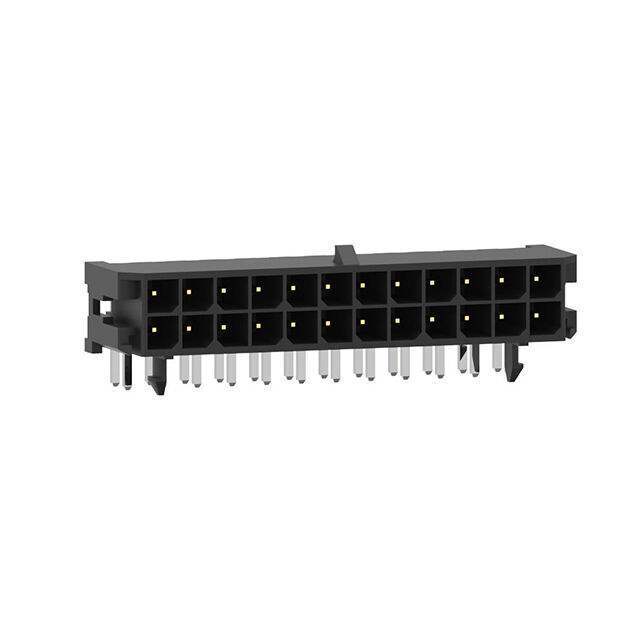

10132449-2421GLF Amphenol ICC (FCI)
Same model may have multiple batches, images only for reference.

10132449-2421GLF

Part No 10132449-2421GLF
Manufacturer Amphenol FCI
Catalog Rectangular Connectors
Description CONN HEADER R/A 24POS 3MM
Datasheet
10132449-2421GLF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1324479-10132449-2421GLF
Manufacturer Amphenol ICC (FCI)
Category Connectors, Interconnects > Rectangular Connectors > Headers, Male Pins
Packaging Tray
Part Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 24
Number of Rows 2
Style Board to Cable/Wire
Ultra Librarian 3D Model Ultra Librarian 10132449-2421GLF CAD Model

Description

Minitek® Pwr 3.0 High Current Connector (HCC) is designed for power applications with a current rating of up to 12A per contact and a wire gauge range from 16AWG to 30AWG for Wire-to-wire and Wire-to-Board applications. It is available in 2 to 24 circuits for dual rows and 2 to 12 circuits for single rows.

● Rated current up to 12A per contact

● Fully isolated terminals

● High retention force in housing

● Fully polarized housing
