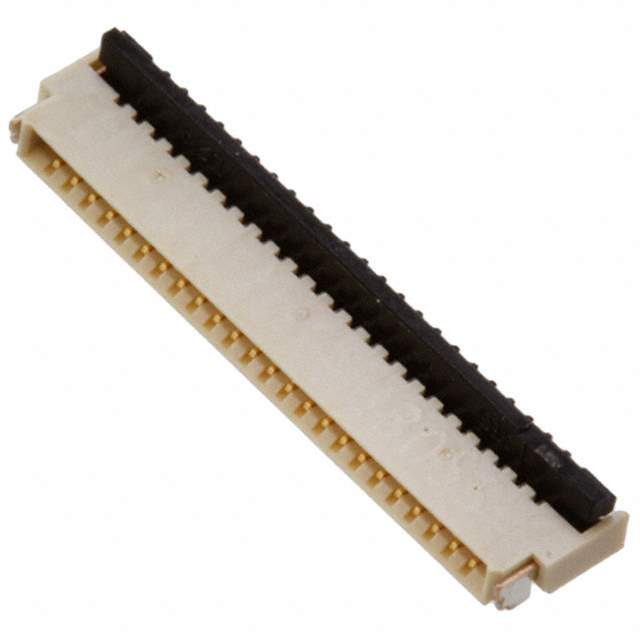

The FH34S series by Hirose Electric Co Ltd is a FFC, FPC (Flat Flexible) connector with 24 positions and a pitch of 0.020" (0.50mm).

• Series: FH34S
• Positions: 24
• Pitch: 0.020" (0.50mm)
• Features: Zero Insertion Force (ZIF), Rotary Lock, Backlock
• Cable End Type: Tapered
• Housing Material: Liquid Crystal Polymer (LCP)
• Actuator Material: Polyamide (PA), Nylon
• Material Flammability Rating: UL94 V-0
• Connector/Contact Type: Contacts, Top
• FFC, FCB Thickness: 0.30mm
• Voltage: 50V
• Current Rating: 0.5A
• Height Above Board: 0.039" (1.00mm)
• Mounting: Surface Mount, Right Angle
• Package: Tape & Reel
• Standard Package: 5,000
• Temperature Range: -55°C ~ 85°C
• Mating Cycle: 20
