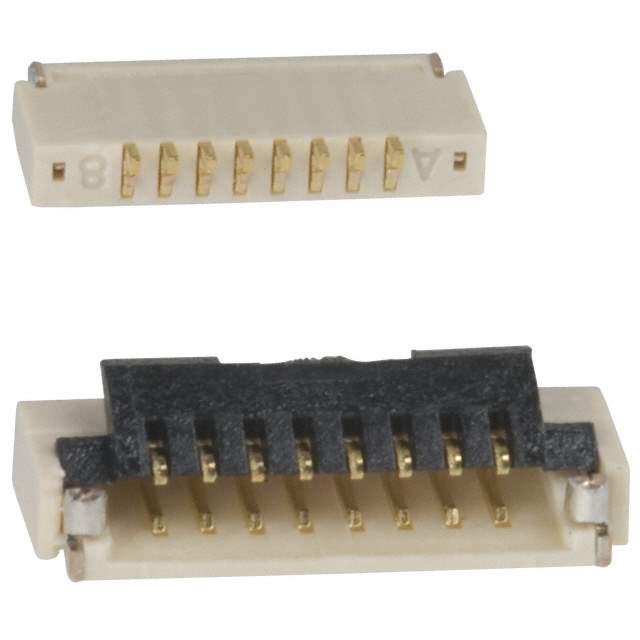

FH19SC-8S-0.5SH(05) Real Image
Same model may have multiple batches, images only for reference.

FH19SC-8S-0.5SH(05)

Part No FH19SC-8S-0.5SH(05)
Manufacturer Hirose Electric Co Ltd
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FFC BOTTOM 8POS 0.50MM R/A
Datasheet
FH19SC-8S-0.5SH(05) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 8 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Hirose Electric Co Ltd
Series FH19SC
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number FH19SC8S05SH05, *FH19SC-8S-0.5SH(05), HFN508DKR, HFN508CT, HFN508TR
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 871834-FH19SC-8S-0.5SH(05)
Ultra Librarian 3D Model Ultra Librarian FH19SC-8S-0.5SH(05) CAD Model

Description

This FFC/FPC connector from Hirose Electric Co Ltd is part of the FH19SC series.

  • Series: FH19SC
  • Contacts: 8
  • Mounting: Bottom 0.020" (0.50mm) Surface Mount, Right Angle
  • Part Status: Obsolete
  • Operating Temperature: -55°C to 85°C
  • Packaging: Reel
  • Units per Package: 5000
  • Rating: 0.5A 50VAC/VDC
  • Contact Resistance: 100mOhm
