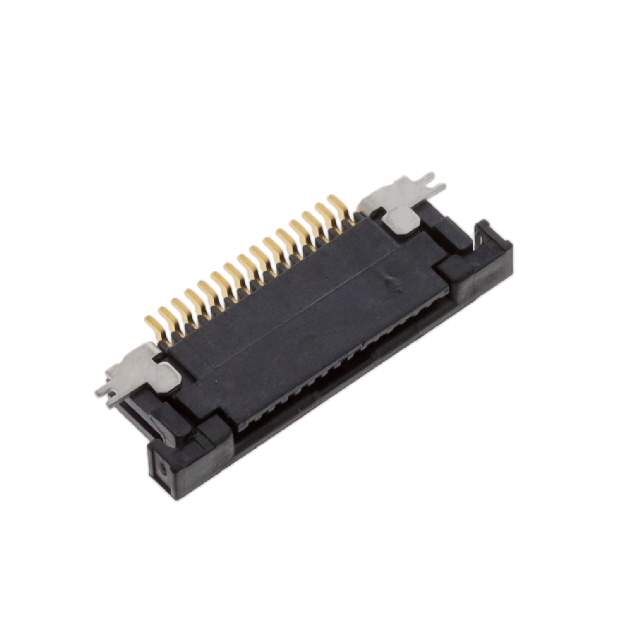

Same model may have multiple batches, images only for reference.

SFV15R-1STBE1HLF

Name: SFV15R-1STBE1HLF
Brand: Amphenol
SKU: 1092510
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SFV15R-1STBE1HLF
Manufacturer	Amphenol
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC BOTTOM 15POS 0.50MM R/A / 15 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Amphenol ICC (FCI)
Series	SFV-R
Package	Tape & Reel (TR),Cut Tape (CT)
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Bottom
Number of Positions	15
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.33mm
Height Above Board	0.071" (1.80mm)
Locking Feature	Slide Lock
Cable End Type	Tapered
Contact Material	Phosphor Bronze
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled, Halogen Free
Actuator Material	Polyphenylene Sulfide (PPS), Glass Filled, Halogen Free
Features	Zero Insertion Force (ZIF)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Housing Color	Black
Actuator Color	Brown
Mating Cycles	20
Base Product Number	SFV15R
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	609-SFV15R-1STBE1HLFTR,609-SFV15R-1STBE1HLFCT,SFV15R-1STBE1HLF-ND
Standard Package	3,000
Win Source Part Number	1092510-SFV15R-1STBE1HLF
Ultra Librarian 3D Model	Ultra Librarian SFV15R-1STBE1HLF CAD Model

Alternative Products

Description

The Amphenol ICC (FCI) SFV15R-1STBE1HLF is a flat flexible connector (FFC) with a zero insertion force (ZIF) feature.

Positions: 15
Pitch: 0.020" (0.50mm)
Contact Finish: Gold
Termination: Solder
Housing Material: Liquid Crystal Polymer (LCP), Glass Filled, Halogen-Free
Actuator Material: Polyphenylene Sulfide (PPS), Glass Filled, Halogen-Free
FFC/FCB Thickness: 0.33mm
Locking Feature: Slide Lock
Cable End Type: Tapered
Package: Tape and Reel or Cut Tape
Voltage Rating: 50V
Height Above Board: 0.071" (1.80mm)
Standard Package: 3,000
Mounting: Surface Mount, Right Angle
ECCN: EAR99
REACH: Affected
HTSUS: 8536.69.4051
Manufacturer: Amphenol ICC (FCI)
