Same model may have multiple batches, images only for reference.

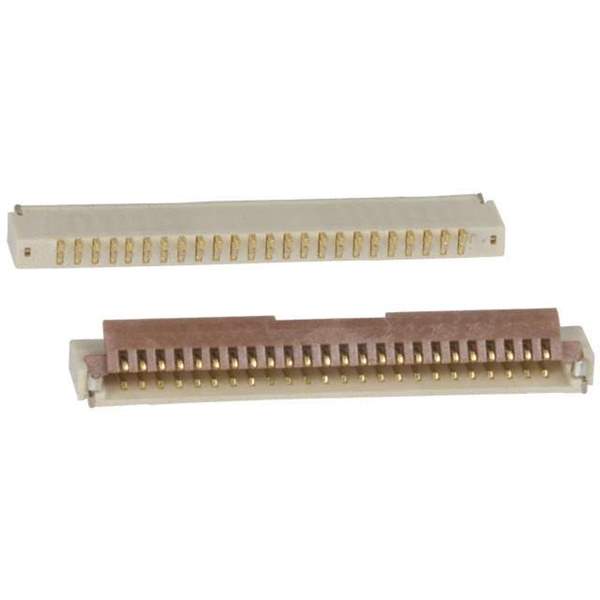

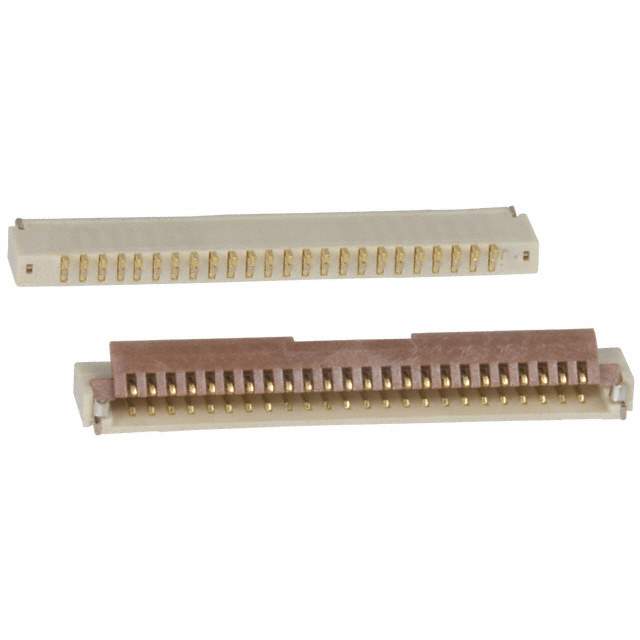

FH19C-24S-0.5SH(05)

Name: FH19C-24S-0.5SH(05)
Brand: Hirose Electric Co Ltd
SKU: 871818
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	FH19C-24S-0.5SH(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Flat Flex Cables (FFC, FPC)
Description	CONN FFC BOTTOM 24POS 0.50MM R/A
Datasheet	FH19C-24S-0.5SH(05) Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Features	24 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer	Hirose Electric Co Ltd
Series	FH19C
Package	Reel - TR
Part Status	Obsolete
Operating Temperature Range	-55°C ~ 85°C
Mounting	Surface Mount, Right Angle
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Part Number	HFN424CT, *FH19C-24S-0.5SH(05), HFN424TR, FH19C24S05SH05, HFN424DKR
Quantity per package	5000
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	871818-FH19C-24S-0.5SH(05)
Ultra Librarian 3D Model	Ultra Librarian FH19C-24S-0.5SH(05) CAD Model

Alternative Products

Description

The FH19C-24S-0.5SH(05) connector assembly from Hirose Electric Co Ltd is a 24-position FFC/FPC connector with a pitch of 0.020 inches.

Positions: 24
Connector Type: FFC/FPC
Pitch: 0.020 inches
Contacts: Bottom
Mounting: Surface mountable, Right Angle
Material: Liquid crystal polymer (LCP)
RoHS Compliant: Yes
Voltage Rating: 50V
Operating Temperature: -55°C to 85°C
Height Above Board: 0.055 inches
