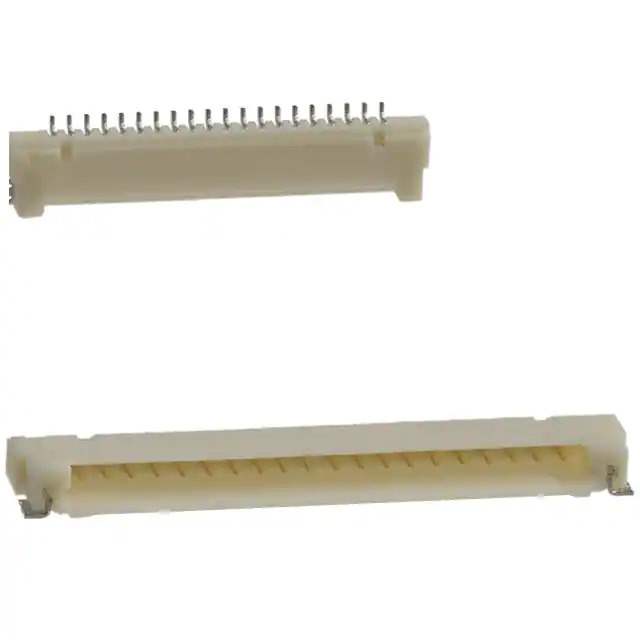

DF14A-20P-1.25H(26)

Name: DF14A-20P-1.25H(26)
Brand: Hirose Electric Co Ltd
SKU: 849237
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF14A-20P-1.25H(26)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 20POS 1.25MM
Datasheet	DF14A-20P-1.25H(26) Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF14
Package	Tape & Reel
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	20
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.086" (2.20mm)
Insulation Height	0.098" (2.50mm)
Contact Shape	Square
Contact Finish - Mating	Tin-Copper
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	849237-DF14A-20P-1.25H(26)
Ultra Librarian 3D Model	Ultra Librarian DF14A-20P-1.25H(26) CAD Model

Alternative Products

Description

The DF14 series is a range of rectangular connectors designed for use in electronic applications. Hirose Electric Co Ltd manufactures the 849237-DF14A-20P-1.25H(26).

Connector Type: Header
Pin Gender: Male
Feature: Solder Retention
Positions: 20
Mounting Type: Surface Mount, Right Angle
Connection Style: Board to Cable/Wire
Contact Material: Brass
Contact Finish: Tin-Copper
Voltage Rating: 150V
Current Rating: 1A
Product Status: Obsolete
