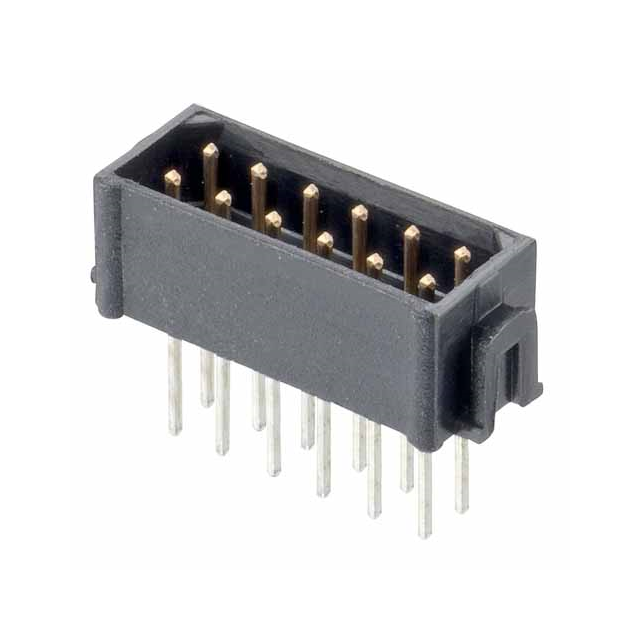

M80-7541645

Get a Quote

Part No	M80-7541645
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 16POS 2MM / Connector Header Through Hole 16 position 0.079" (2.00mm)
Datasheet	M80-7541645 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Harwin Inc.
Series	Datamate L-Tek
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.177" (4.50mm)
Insulation Height	0.219" (5.56mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	29.5µin (0.75µm)
Contact Material	Phosphor Bronze
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	2.2A per Contact
Voltage Rating	120V
Mated Stacking Heights	7.23mm, 7.85mm, 10.2mm, 13.51mm
Base Product Number	M80-754
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1074011-M80-7541645
Ultra Librarian 3D Model	Ultra Librarian M80-7541645 CAD Model

Description

The M80-7541645 is a rectangular connector header manufactured by Harwin Inc.

Positions: 16
Application: board-to-board or cable
Pitch: 0.079" (2.00mm)
Mating Contact Finish: gold
Voltage Rating: 120V
Current Rating: 2.2A per contact
Supply and Demand Status: unlimited
