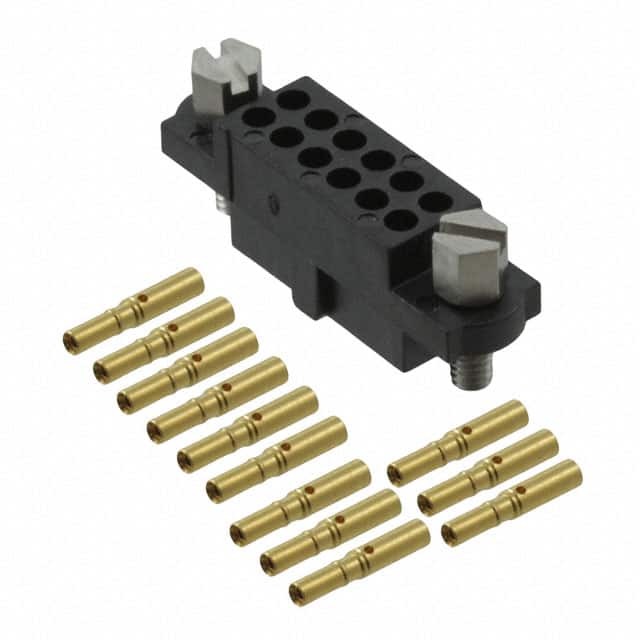

Same model may have multiple batches, images only for reference.

M80-4611205

Name: M80-4611205
Brand: Harwin Inc.
SKU: 924979
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	M80-4611205
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 12POS CRIMP 24-28AWG / 12 Position Rectangular Receptacle Connector Crimp Gold 24-28 AWG
Datasheet	M80-4611205 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Free Hanging, Panel Mount
Mfr	Harwin Inc.
Series	Datamate J-Tek
Package	Bulk
Product Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	12
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Cable Termination	Crimp
Wire Type	Discrete
Wire Gauge	24-28 AWG
Features	Jackscrews
Contact Finish	Gold
Contact Finish Thickness	11.8µin (0.30µm)
Color	Black
Base Product Number	M80-461
Standard Package	1 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.8000
Win Source Part Number	924979-M80-4611205
Ultra Librarian 3D Model	Ultra Librarian M80-4611205 CAD Model

Description

The M80-4611205 is a rectangular connector from Harwin Inc.'s Datamate J-Tek series.

Series: Datamate J-Tek
Positions: 12
Pitch: 0.079" (2.00mm)
Mounting: Free hanging and panel mount
Package: Bulk
Status: Active
Contact Finish: Gold
Wire Gauge: 24 to 28 AWG
Contact Finish Thickness: 11.8µin (0.30µm)
HTSUS Code: 8536.69.8000
