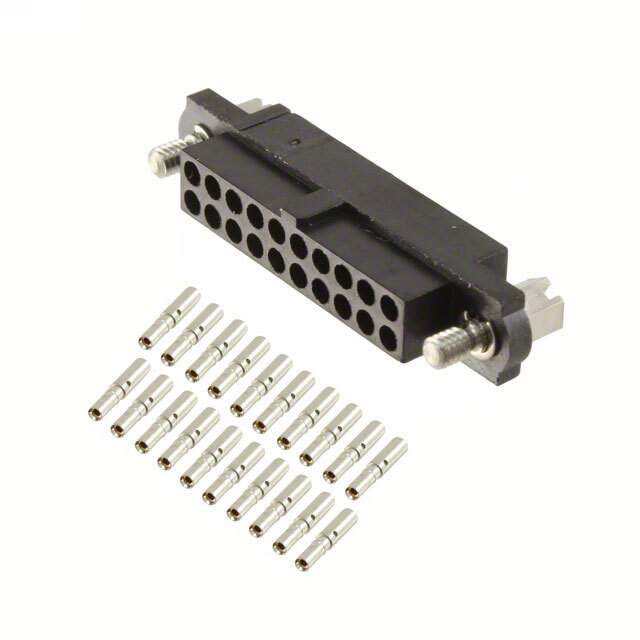

M80-4602042 Real Image
Same model may have multiple batches, images only for reference.

M80-4602042

Part No M80-4602042
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN RCPT 20POS CRIMP 22AWG GOLD
Datasheet
M80-4602042 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 11 Weeks
Features 20 Position Rectangular Receptacle Connector Crimp Gold 22 AWG
Manufacturer Harwin Inc.
Series Datamate J-Tek
Package Bulk
Mounting Free Hanging (In-Line)
Family Name M80-460
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.8000
Other Part Number M80-4D12042F1, 952-2048, M804602042, M80-4D12042F1-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 924976-M80-4602042
Ultra Librarian 3D Model Ultra Librarian M80-4602042 CAD Model

Description

The Its supply and demand status is balanced. This 20-position rectangular receptacle connector crimp gold 22 AWG is suitable for a variety of applications, including aerospace, defense, and industrial automation from Harwin Inc.
