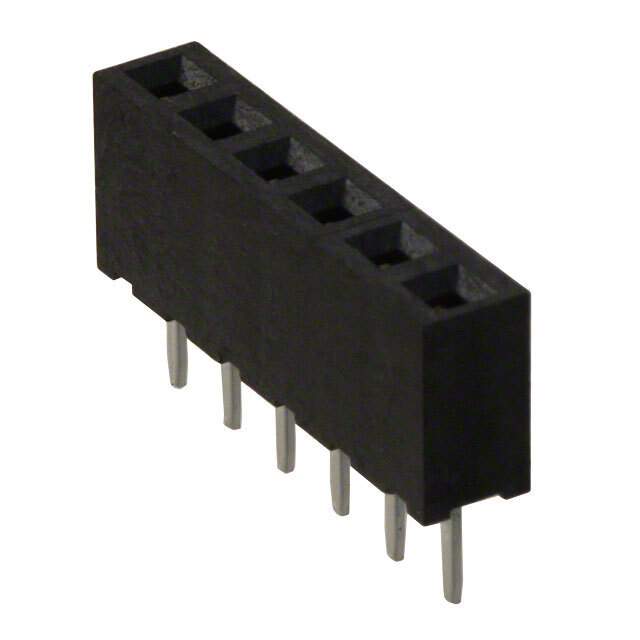

Same model may have multiple batches, images only for reference.

M22-7130642

Name: M22-7130642
Brand: Harwin Inc.
SKU: 1332900
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	M22-7130642
Manufacturer	Harwin Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 6POS 0.079 GOLD PCB / 6 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	M22-7130642 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Receptacles, Female Sockets
Manufacturer	Harwin Inc.
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	6
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Insulation Color	Black
Insulation Height	0.173" (4.40mm)
Contact Length - Post	0.094" (2.40mm)
Temperature Range - Operating	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	5.9mm
Current Rating (Amps)	2A
Voltage Rating	500VAC
Applications	General Purpose, Industrial, Telecommunications
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	M22-713
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	952-1353-5,M227130642
Standard Package	98
Win Source Part Number	1332900-M22-7130642
Ultra Librarian 3D Model	Ultra Librarian M22-7130642 CAD Model

Description

The Harwin Inc. M22-7130642 is a 6-position through-hole female socket connector that provides a reliable electrical connection between printed circuit boards.

Pitch: 2mm
Contact Finish: Gold-plated
Maximum Current Rating: 2A
Application Suitability: Suitable for use in various applications, including industrial control systems, telecommunications, and general-purpose electronics.
