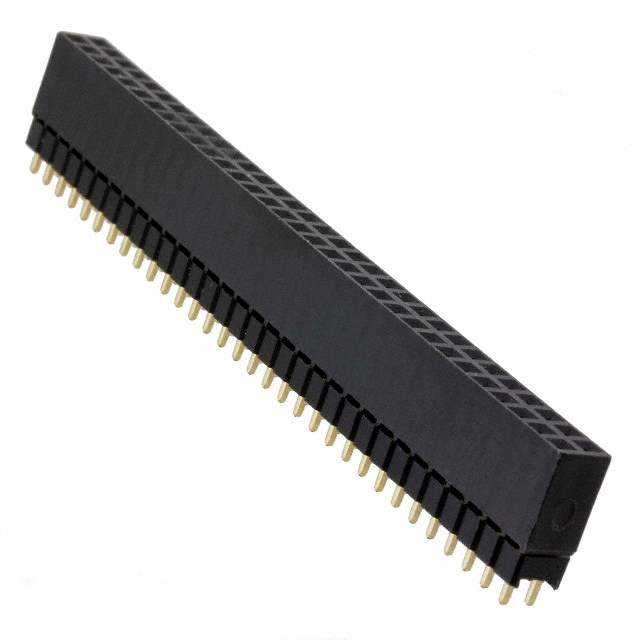

Part No M20-6113245
Manufacturer Harwin Inc.
Catalog Backplane Connectors
Description CONN NON-STKTHRU PC/104 64P PCB / 64 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104
Datasheet
M20-6113245 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Harwin Inc.
Series M20
Package Tube
Connector Type Non-Stackthrough, Unkeyed (PC/104)
Connector Style PC/104
Number of Positions 64
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 2
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Color Black
Current Rating (Amps) 3A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Base Product Number M20-611
Standard Package 7
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340633-M20-6113245
Ultra Librarian 3D Model Ultra Librarian M20-6113245 CAD Model

Description

The M20-6113245 from Harwin Inc is a specialized backplane connector from the M20 series.

  • Series: M20
  • Number of Positions: 64
  • Pitch: 0.100" (2.54mm)
  • Color: Black
  • Connector Type: Non-Stackthrough, Unkeyed (PC/104)
  • All Positions Loaded: Yes
  • Number of Rows: 2
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00μin (0.076μm)
  • Package: Tube
  • Connector Style: PC/104
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 7
  • Operating Temperature: -55°C ~ 105°C
  • ECCN: EAR99
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
  • Current Rating (Amps): 3A
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4040
