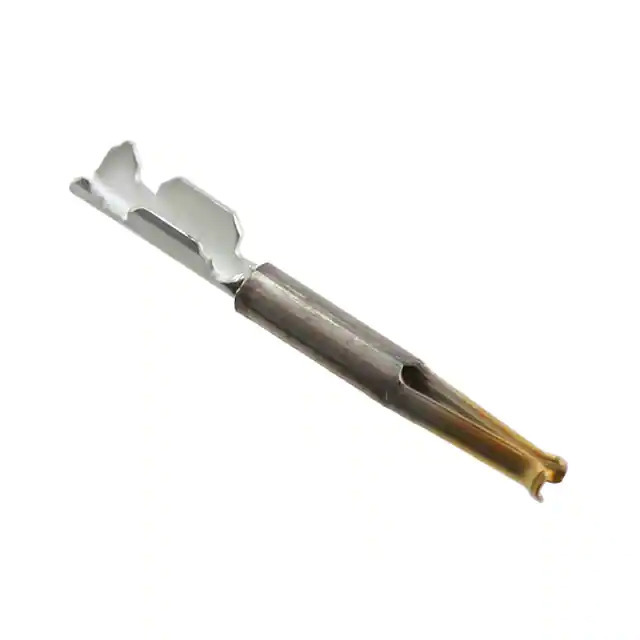

1658686-1 TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Contacts - Multi Purpose
Mfr TE Connectivity AMP Connectors
Series AMPLIMITE HDP-22
Package Tape & Reel (TR)
Product Status Active
Type Stamped
Pin or Socket Socket
Contact Termination Crimp
Wire Gauge 22-28 AWG
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 1658686
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1362873-1658686-1
Ultra Librarian 3D Model Ultra Librarian 1658686-1 CAD Model

Description

The TE Connectivity AMP Connectors AMPLIMITE HDP-22 series is a multi-purpose contact for connectors.

  • Contact Type: Socket
  • Termination Type: Crimp
  • Wire Gauge: 22 ~ 28 AWG
  • Finish: Gold
  • Finish Thickness: 30.0µin (0.76µm)
  • Contact Material: Phosphor Bronze
