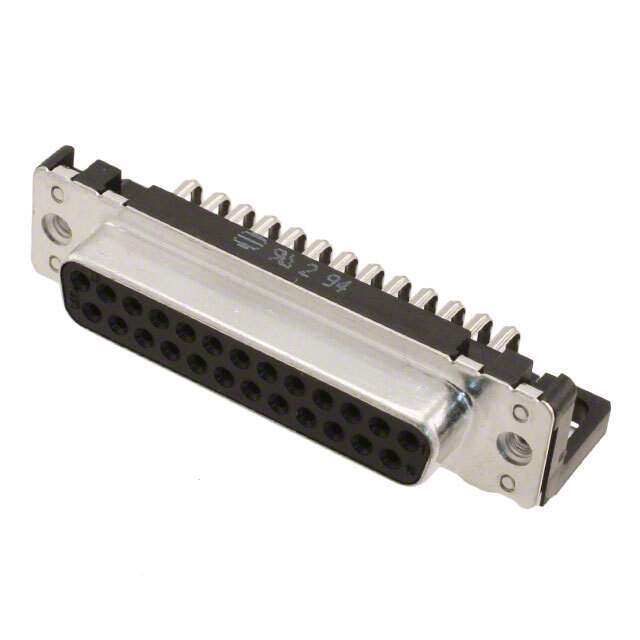

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1203592-09663526612
Manufacturer HARTING
Category Connectors, Interconnects -D-Sub, D-Shaped Connectors- D-Sub Connector Assemblies
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Backset Spacing 0.409" (10.40mm)
Contact Form Stamped
Dielectric Material Polybutylene Terephthalate (PBT), Polyester, Glass Filled
Contact Material Copper Alloy
Ultra Librarian 3D Model Ultra Librarian 09663526612 CAD Model

Description

25 Position D-Sub Receptacle, Female Sockets Connector
