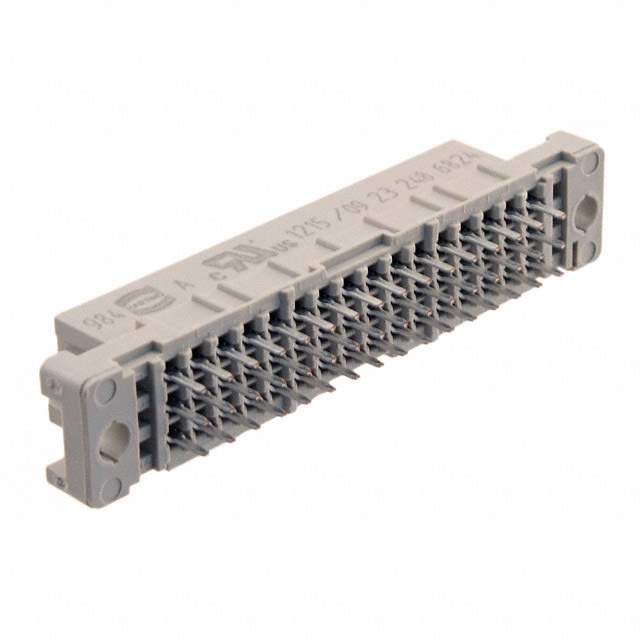

09232486824 Real Image
Same model may have multiple batches, images only for reference.

09232486824

Part No 09232486824
Manufacturer HARTING
Catalog Backplane Connectors
Description CONN DIN RCPT 48POS PCB / 48 Position Din Connector Receptacle, Female Sockets Through Hole
Datasheet
09232486824 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - DIN 41612
Mfr HARTING
Series DIN 41612
Package Bulk
Product Status Active
Connector Type Receptacle, Female Sockets
Number of Positions 48
Number of Positions Loaded All
Pitch 0.100" (2.54mm)
Number of Rows 3
Style 2C
Level, Class 2
Mounting Type Through Hole
Termination Solder
Material Flammability Rating UL94 V-0
Material - Insulation Thermoplastic, Glass Filled
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 858604-09232486824
Ultra Librarian 3D Model Ultra Librarian 09232486824 CAD Model

Description

The 858604-09232486824 is a DIN 41612 Backplane Connector from HARTING.

  • Type: Receptacle Connector with Female Sockets
  • Positions: 48
  • Pitch: 0.100" (2.54mm)
  • Mounting: Through-Hole
  • Termination: Soldering
  • Insulation Material: Thermoplastic, Glass-Filled
  • Flammability Rating: UL94 V-0
  • Package: 100 pieces
  • Series: DIN 41612
  • Level: 2
  • Temperature Range: Not Specified
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • Current Rating: Not Specified
  • Contact Finish: Not Specified
  • HTSUS Code: 8536.69.4040
  • Status: Active
