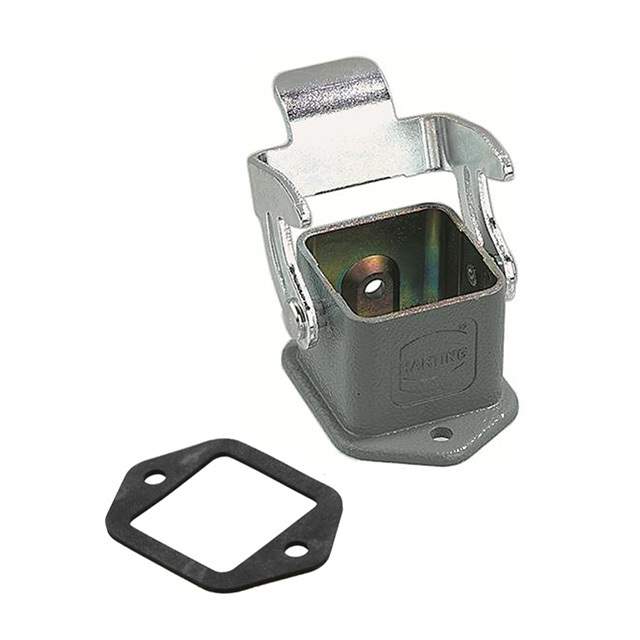

Part No 09200030301
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN BASE BOTTOM ENTRY SZ3A
Datasheet
09200030301 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 3000001072-09200030301
Manufacturer HARTING
Category Connectors, Interconnects -Heavy Duty Connectors -Heavy Duty Connector Housings, Hoods, Bases
Series Han® A
Package Bulk
Product Status Active
Connector Type Base - Panel Mount
Style Bottom Entry
Size 3A
Lock Location Locking Clip (1) on Base Bottom
Size / Dimension 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
Ultra Librarian 3D Model Ultra Librarian 09200030301 CAD Model

Description

The HARTING Han® A series is a range of heavy-duty connector housings, hoods, and bases designed for use in industrial applications.

  • Type: Base
  • Mounting Type: Panel Mount
  • Entry Style: Bottom Entry
  • Lock Location: Locking Clip on Base Bottom
  • Size: 3A
  • Package: Bulk
  • Size / Dimension: 1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
  • Product Status: Active
