Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors>Specialized
Mfr HARTING
Series -
Package Bulk
Product Status Obsolete
Connector Usage Backplane-to-Daughtercard
Connector Type Plug, Male Pins
Connector Style Coax
Number of Positions 6
Number of Positions Loaded All
Pitch -
Number of Rows -
Number of Columns -
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Layout, Typical 6 Coax
Features Board Guide, Guide Pin
Contact Finish Gold
Contact Finish Thickness -
Color Natural
Current Rating (Amps) 3A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Voltage Rating -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 20 pcs
Win Source Part Number 1380401-07311000019
Ultra Librarian 3D Model Ultra Librarian 07311000019 CAD Model

Description

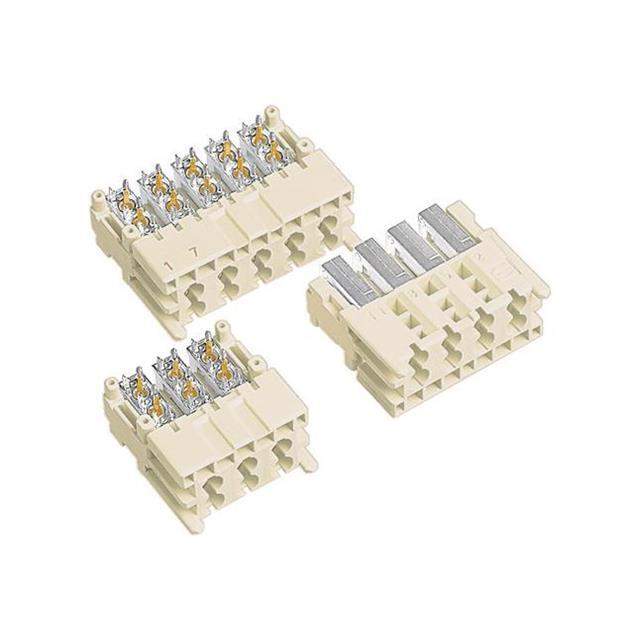

The backplane connectors in the 1380401-07311000019 series from HARTING are specialized connectors commonly used in backplane-to-daughtercard applications.

  • Configuration: 6-position
  • Connector Style: Coaxial connector
  • Termination: Press-fit termination
  • Flammability Rating: UL94 V-0
  • Contact Finish: Gold
  • Standard Package: 20 pcs
  • Mounting Options: Board edge, through hole, and right-angle mounting
  • Temperature Range: -55°C to 125°C
  • Application: Backplane-to-daughtercard applications requiring high-speed and secure connections
