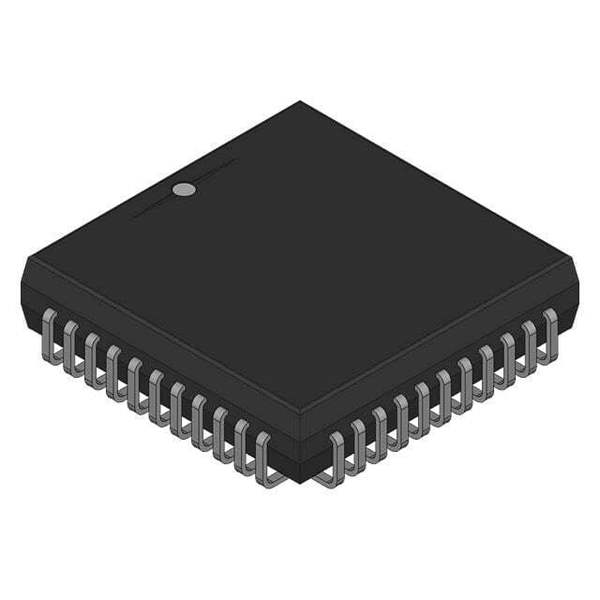

The IS80C86 is a 16-bit microprocessor manufactured by Harris Corporation (now Intersil). It is a CMOS version of the original Intel 8086 processor, offering improved power efficiency and performance.

Applications:

• Embedded Systems: Used in various embedded systems requiring 16-bit processing capabilities.
• Industrial Control Systems: Implemented in industrial control systems for process automation and monitoring.
• Instrumentation: Used in test and measurement equipment for data acquisition and processing.
• Early Personal Computers: A successor to the original 8086 used in early PCs.
• Military and Aerospace Applications: Suitable for applications where low power consumption and reliability are critical.

Features:

• 16-Bit Architecture: 16-bit data bus and address bus, providing access to a larger memory space than 8-bit processors.
• CMOS Technology: Low power consumption compared to NMOS processors.
• Instruction Set Compatibility: Compatible with the Intel 8086 instruction set.
• Multiple Operating Modes: Supports minimum and maximum operating modes for different system configurations.
• Interrupt Handling: Includes hardware interrupt handling capabilities.
• DMA Support: Supports direct memory access (DMA) for high-speed data transfers.

Benefits:

• Improved Power Efficiency: CMOS technology reduces power consumption, making it suitable for battery-powered applications.
• Increased Performance: 16-bit architecture provides improved performance compared to 8-bit processors.
• Instruction Set Compatibility: Simplifies migration from existing 8086-based systems.
• Versatile Architecture: Suitable for a wide range of applications.

Additional Details:

The IS80C86 operates at a specific clock frequency, typically in the range of a few MHz. It requires external memory and peripheral devices to form a complete system. Datasheets provide detailed specifications for pin assignments, timing diagrams, and electrical characteristics. Understanding the segmented memory architecture of the 8086 family is crucial for software development.
