Same model may have multiple batches, images only for reference.

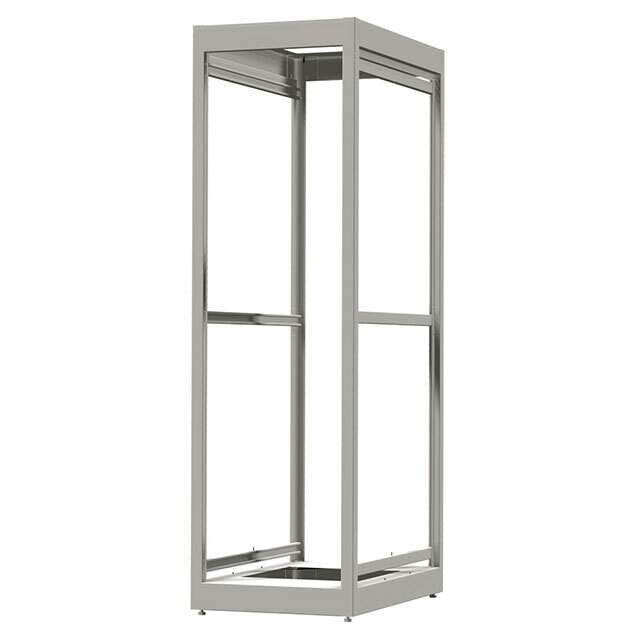

C2F247023CG1 Real Image
Same model may have multiple batches, images only for reference.

C2F247023CG1

Part No C2F247023CG1
Manufacturer Hammond Manufacturing
Catalog Racks
Description RACK FRAME
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Boxes, Enclosures, Racks
Manufacturer Hammond Manufacturing
Status Active
Dimensions - Panel 21.630" L x 24.110" W x 70.060" H (549.40mm x 612.39mm x 1779.52mm)
Dimensions - Overall 23.630" L x 28.000" W x 77.310" H (600.20mm x 711.20mm x 1963.67mm)
Material Metal, Steel
Features Front and Rear Access
Style Open Rack, Double Frame
Type Open Rack
Door Doorless
Color Beige, Gray
Shipping Info Drop shipped from the Manufacturer's Warehouse
Win Source Part Number 1027129-C2F247023CG1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian C2F247023CG1 CAD Model

Description

The Hammond Manufacturing open rack is a double frame rack that is designed for use in electronic circuits.

  • Type: Open Rack, Double Frame
  • Material: Steel
  • Color: Beige and Gray
  • Access: Front and Rear
  • Door: Without Door
  • Panel Dimensions: 21.630 inches L x 24.110 inches W x 70.060 inches H
  • Overall Dimensions: 23.630 inches L x 28.000 inches W x 77.310 inches H
