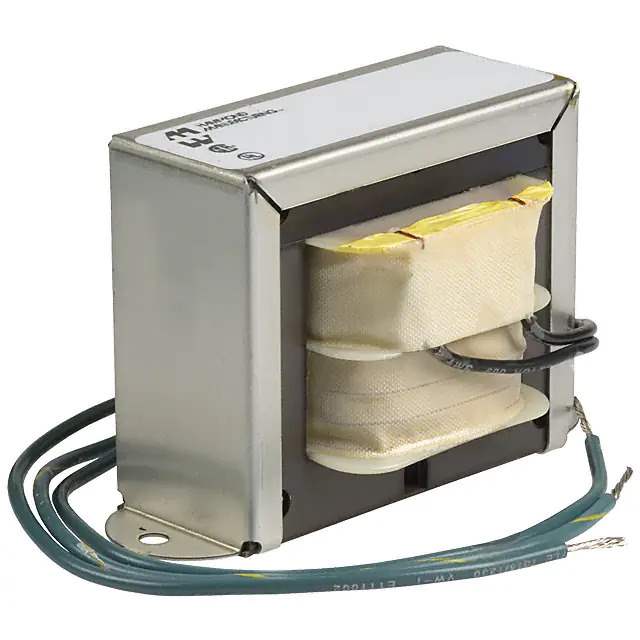

166J20 Real Image
Same model may have multiple batches, images only for reference.

166J20

Part No 166J20
Manufacturer Hammond Manufacturing
Catalog Power Transformers
Description PWR XFMR LAMINATED 20VA CHAS MT
Datasheet
166J20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Power Transformers
Mfr Hammond Manufacturing
Series 166
Package Bulk
Product Status Active
Type Laminated Core
Voltage - Primary 115V
Voltage - Secondary (Full Load) 20V
Current - Output (Max) 1A
Primary Winding(s) Single
Secondary Winding(s) Single
Center Tap Yes
Power - Max 20VA
Mounting Type Chassis Mount
Termination Style Wire Leads
Size / Dimension 82.55mm L x 44.45mm W
Height - Seated (Max) 50.80mm
Voltage - Isolation 2000Vrms
Weight 1 lb (453.59 g)
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Win Source Part Number 850613-166J20
Ultra Librarian 3D Model Ultra Librarian 166J20 CAD Model

Description

The 166 Series Power Transformer is a reliable and high-performance component for your power circuits. Manufactured by Hammond Manufacturing, this transformer is designed to provide excellent voltage regulation and efficiency.

  • Maximum Power: 20VA
  • Voltage Isolation: 2000Vrms
  • Mounting Type: Chassis Mount
  • Termination Style: Wire Leads
  • Size: 82.55mm L x 44.45mm W
  • Seated Height: 50.80mm
  • Core Construction: Laminated
  • Feature: Center Tap
