124D Hammond Manufacturing – Price, Stock & Datasheet

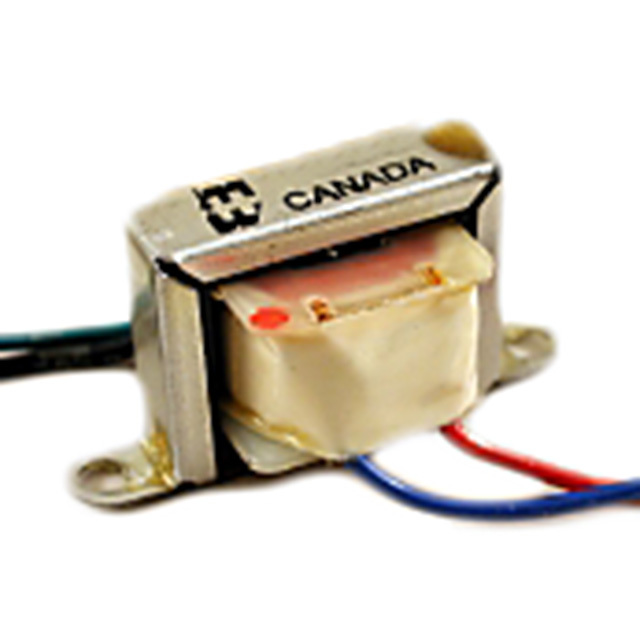

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Turns Ratio - Primary 1:1.49
Impedance - Primary (Ohms) 7kCT
Impedance - Secondary (Ohms) 15.8kCT
DC Resistance (DCR) - Primary 218Ohm, 236Ohm
DC Resistance (DCR) - Secondary 297Ohm, 394Ohm
Transformer Type Tube Driver and Speaker Matching
Frequency Range 150Hz ~ 15kHz
Frequency Response ±1dB
Voltage - Isolation 500Vrms
Power Level 5W
Mounting Type Chassis Mount
Size / Dimension 2.810" L x 1.460" W (71.37mm x 37.08mm)
Height - Seated (Max) 1.680" (42.67mm)
Termination Style Wire Leads
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1511031-124D
Ultra Librarian 3D Model Ultra Librarian 124D CAD Model
