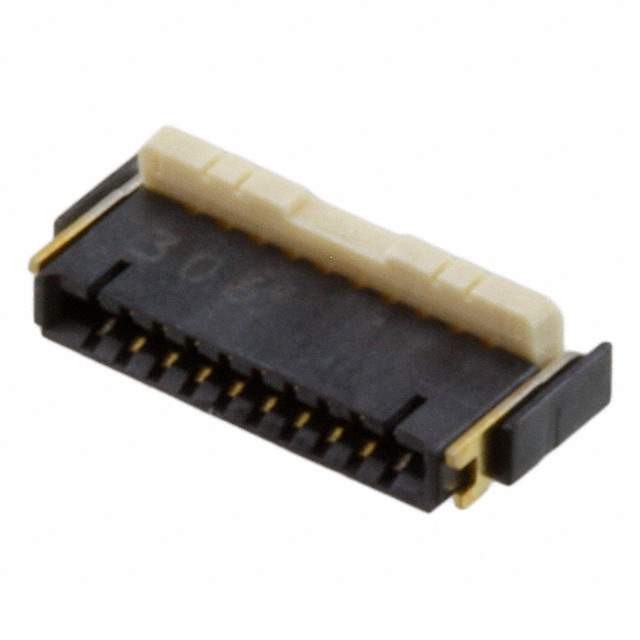

AYF530865T Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 10 Weeks
Features 8 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Manufacturer Panasonic
Series Y5BW
Package Reel - TR
Operating Temperature Range -55°C ~ 85°C
Mounting Surface Mount, Right Angle
Family Name AYF530865
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 862807-AYF530865T
Ultra Librarian 3D Model Ultra Librarian AYF530865T CAD Model

Description

The Y5BW is an 8-position FPC connector designed for surface mount applications from Panasonic.

  • Contacts: Top and bottom 0.020" (0.50mm)
  • Orientation: Right-angle
  • Series: AYF530865
  • Operating Temperature: -55°C ~ 85°C
  • ECCN: EAR99
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated Production Lead Time: 10 weeks
  • MSL Level: 1 (unlimited)
