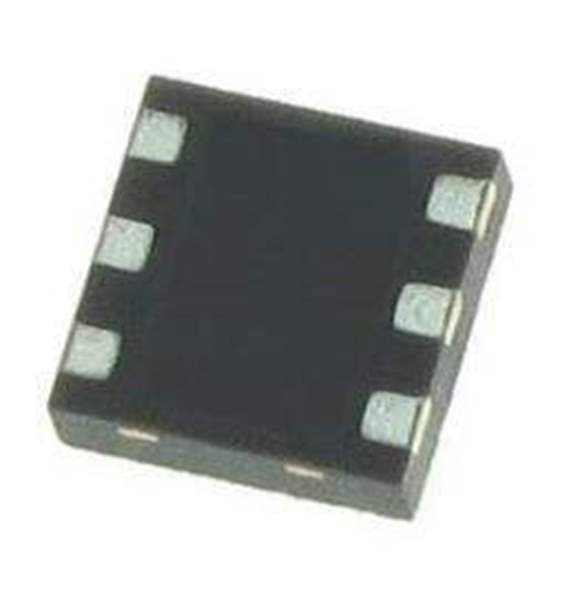

GRF4005 Guerrilla RF
Same model may have multiple batches, images only for reference.

GRF4005

Part No GRF4005
Manufacturer Guerrilla RF, Inc.
Catalog RF Amplifiers
Description RF Amplifier 1.7-2.7GHz Gain 13dB OP1dB 27.5dBm
Datasheet
GRF4005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Guerrilla RF
Category RF Amplifier
Operating Frequency 100 MHz to 3.8 GHz
Operating Supply Voltage 1.8 V to 5.5 V
Operating Supply Current 170 mA
Gain 13 dB
NF - Noise Figure 0.8 dB
Type Low Noise Amplifiers
Mounting Style SMD/SMT
Package / Case DFN-6
Technology GaAs
P1dB - Compression Point 27.5 dBm
OIP3 - Third Order Intercept 43 dBm
Ultra Librarian 3D Model Ultra Librarian GRF4005 CAD Model

Description

The GRF4005 is a broadband low noise gain block designed for small cell, wireless infrastructure and other high-performance applications. With simple external matching, it exhibits outstanding broadband noise figure (NF), linearity and return losses over wide fractional bandwidths with a single match.
Configured as a first stage LNA, linear driver or cascaded gain block, GRF4005 offers high levels of reuse both within a design and across platforms. The device is operated from a supply voltage (VDD) of 1.8 to 5.5 volts. IDDQ can be adjusted over a wide range for optimal efficiency and linearity.
