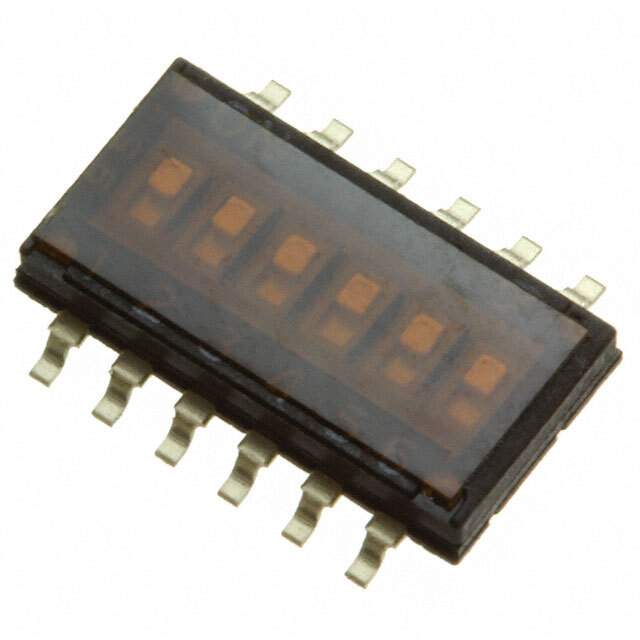

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 97
Package Tube
Circuit SPST
Number of Positions 6
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting SMD (SMT)
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA), Nylon
Length 0.348" (8.85mm)
Mechanical Life 1,000 Cycles
Base Product Number 97C06
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 97C06ST-ND,2266-97C06ST,GH7704
Standard Package 54
Win Source Part Number 1193290-97C06ST
Ultra Librarian 3D Model Ultra Librarian 97C06ST CAD Model

Description

The Grayhill Inc. 97 series DIP switch is a versatile and reliable component that is ideal for use in a wide range of electronic applications.

  • Positions: 6
  • Pitch: 0.050" (1.27mm)
  • Termination Style: Gull wing
  • Contact Finish: Gold
  • Construction: Copper alloy
  • Sealed: Tape sealed
  • Voltage: 24VDC
  • Current: 25mA
  • Operating Temperature: -40°C to 85°C
  • Mechanical Life: 1,000 cycles
  • Washable: Yes
  • Mounting: Surface
  • Height Above Board: 0.063" (1.60mm)
