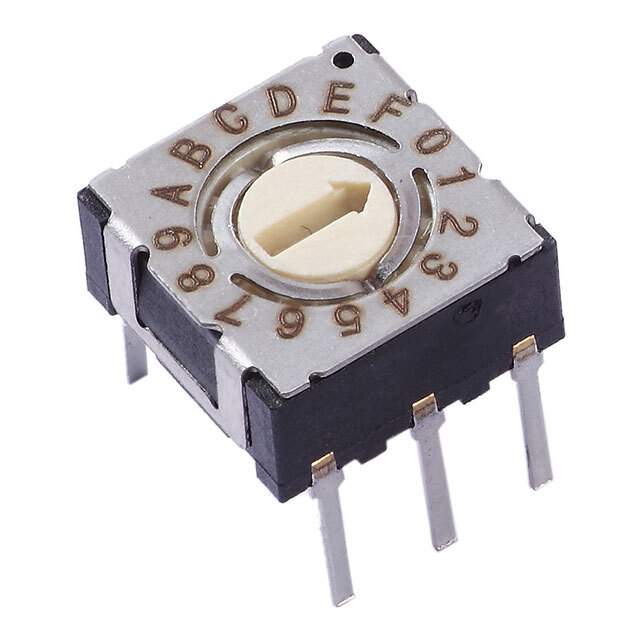

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer CTS Electrocomponents
Series 220
Packaging Tube
Circuit Hexadecimal
Number of Positions 16
Current Rating 100mA
Voltage Rating 50VDC
Actuator Type Rotary for Tool
Actuator Level Flush, Recessed
Contact Material Beryllium Copper
Contact Finish Gold
Height Above Board 0.144" (3.66mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Length 0.283" (7.20mm)
Operating Temperature Range -40°C ~ 85°C
Mechanical Life 10,000 Steps
Electrical Life 10,000 Steps
Win Source Part Number 767682-220ADA16
Popularity Medium
Supply and Demand Status Limited
Quantity per package 66
Family Name 220
Introduction Date January 28, 2014
ECCN EAR99
Estimated EOL Date 2030
Ultra Librarian 3D Model Ultra Librarian 220ADA16 CAD Model

Description

The CTS Electrocomponents 220ADA16 is a rotary hexadecimal switch manufactured by CTS Electrocomponents.

  • Positions: 16
  • Pitch: 0.100" (2.54mm)
  • Contact Finish: Gold
  • Contact Material: Beryllium Copper
  • Voltage Rating: 50VDC
  • Current Rating: 100mA
  • Supply and Demand: Limited
