Same model may have multiple batches, images only for reference.

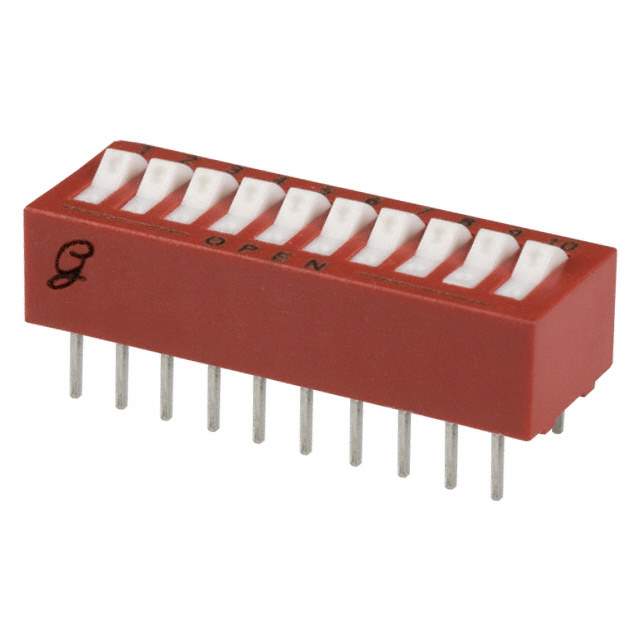

76SB10ST Real Image
Same model may have multiple batches, images only for reference.

76SB10ST

Part No 76SB10ST
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V / Dip Switch SPST 10 Position Through Hole Rocker Actuator 150mA 30VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 76
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 1.080" (27.43mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 76SB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names GH7117
Standard Package 9
Win Source Part Number 1028800-76SB10ST
Ultra Librarian 3D Model Ultra Librarian 76SB10ST CAD Model

Description

The Grayhill Inc. 1028800-76SB10ST is a through-hole SPST circuit dip switch with 10 positions, 2.54mm pitch, and a tape seal feature.

  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Voltage Rating: 30VDC
  • Actuator Type: Raised Rocker
  • Washable: Yes
  • Mechanical and Electrical Life: 2,000 Cycles
  • Height Above Board: 8.00mm
  • Length: 27.43mm
  • Body Material: Thermoplastic
  • Temperature Range: -40°C ~ 85°C
  • Manufacturer Pack Quantity: 9
  • Current Rating: 150mA
