Same model may have multiple batches, images only for reference.

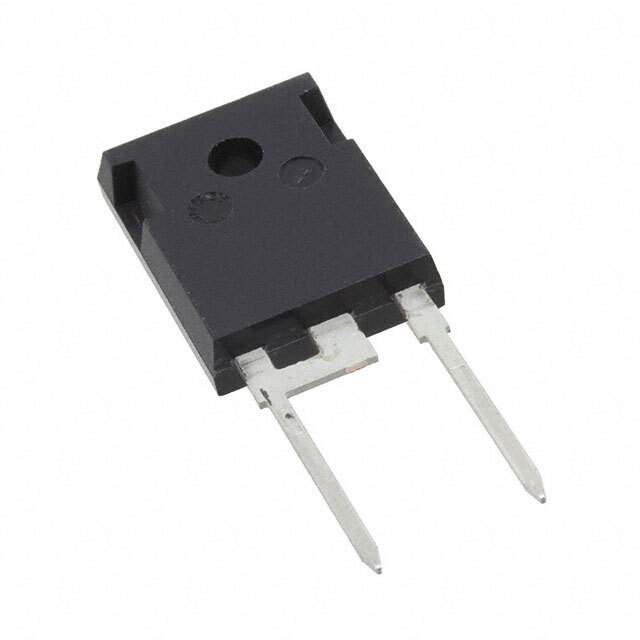

GP2D020A120B Real Image
Same model may have multiple batches, images only for reference.

GP2D020A120B

Part No GP2D020A120B
Manufacturer Global Power Technologies Group
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 1.2KV 20A TO247-2
Datasheet
GP2D020A120B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Global Power Technologies Group
Series Amp+
Packaging Tube
Diode Type Silicon Carbide Schottky
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 20A (DC)
Voltage - Forward (Vf) (Maximum) @ If 1.8V @ 20A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0ns
Current - Reverse Leakage @ Vr 40μA @ 1200V
Capacitance @ Vr, F 1270pF @ 1V, 1MHz
Mounting Style Through Hole
Package TO-247-2
Manufacturer Package TO-247-2
Operating Temperature - Junction -55°C ~ 175°C
Win Source Part Number 775069-GP2D020A120B
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian GP2D020A120B CAD Model

Description

The Global Power Technologies Group GP2D020A120B is a silicon carbide Schottky diode.

  • Current Rating: 20A (DC)
  • Voltage Rating: 1200V
  • Voltage Forward (Vf): 1.8V @ 20A
  • Reverse Leakage Current: 40μA @ 1200V
  • Capacitance: 1270pF @ 1V, 1MHz
  • Temperature Range: -55°C ~ 175°C
