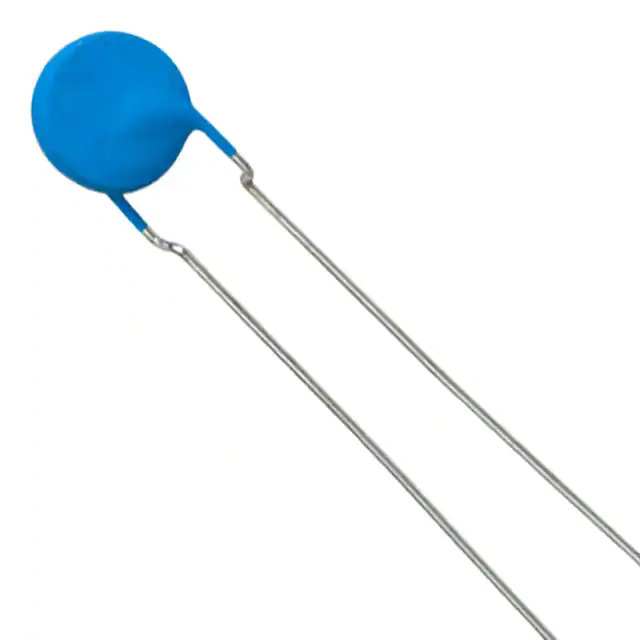

Same model may have multiple batches, images only for reference.
B59875C0120A070 EPCOS (TDK)
Same model may have multiple batches, images only for reference.

B59875C0120A070

Part No B59875C0120A070
Manufacturer EPCOS (TDK)
Catalog PTC Resettable Fuses
Description PTC RESET FUSE 265V 55MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - PTC Resettable Fuses
Mfr EPCOS - TDK Electronics
Series -
Package Bulk
Product Status Active
Type Ceramic
Voltage - Max 265V
Current - Hold (Ih) (Max) 55 mA
Current - Trip (It) 110 mA
Current - Max 1 A
Resistance - 25°C (Typ) 65 Ohms
Temperature Range - Operating 0°C ~ 60°C
Ratings -
Mounting Type Through Hole
Package / Case Radial, Disc
Size / Dimension 0.354" Dia x 0.197" T (9.00mm x 5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Thickness (Max) -
Lead Spacing 0.197" (5.00mm)
Approval Agency UR
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.40.8070
Win Source Part Number 1375658-B59875C0120A070
Ultra Librarian 3D Model Ultra Librarian B59875C0120A070 CAD Model

Description

The B59875C0120A070 PTC Resettable Fuse is a circuit protection device manufactured by EPCOS - TDK Electronics.

  • Current - Max: 1A
  • Voltage - Max: 265V
  • Current - Trip (It): 110mA
  • Mounting Type: Through Hole
  • Package / Case: Radial, Disc
  • Lead Spacing: 0.197" (5.00mm)
  • Size / Dimension: 0.354" Dia x 0.197" T (9.00mm x 5.00mm)
  • Max Height: 0.492" (12.50mm)
  • REACH Status: REACH Unaffected
  • ECCN: EAR99
  • Status: Active
