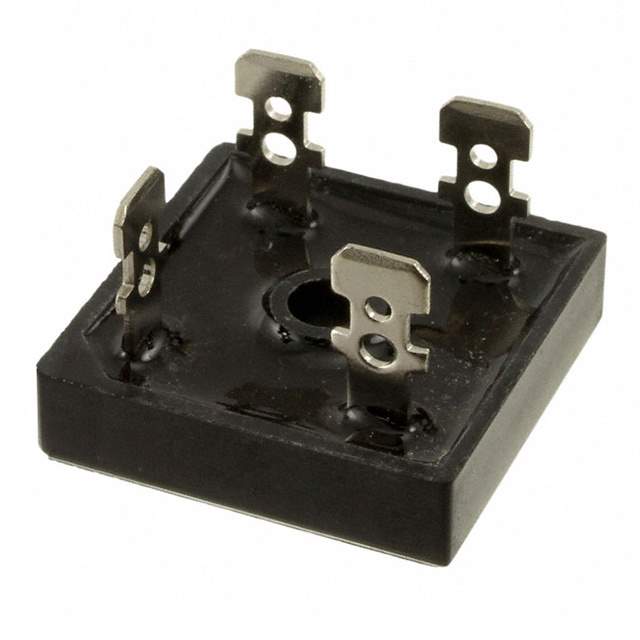

KBPC2506T Real Image
Same model may have multiple batches, images only for reference.

KBPC2506T

Part No KBPC2506T
Manufacturer GeneSiC Semiconductor
Catalog Bridge Rectifiers
Description DIODE BRIDGE 600V 25A KBPC-T/W / Diode Rectifier Bridge Single 600V 25A 4-Pin Case KBPC-T
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer GeneSiC Semiconductor
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 600V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 12.5A
Current - Reverse Leakage @ Vr 5μA @ 600V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Chassis Mount
Package 4-Square, KBPC-T
Manufacturer Package KBPC
Win Source Part Number 777975-KBPC2506T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 50
Family Name KBPC2506T
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian KBPC2506T CAD Model

Description

The GeneSiC Semiconductor KBPC2506T is a single-phase standard diode. The specifications are as follows:

  • Current Rating: 25A
  • Peak Reverse Voltage: 600V
  • Voltage Drop: 1.1V @ 12.5A
  • Reverse Leakage Current: 5μA @ 600V
  • Package: 4-square KBPC-T
  • Mounting: Chassis
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Family: KBPC2506T
  • Category: Discrete Semiconductor Products
  • Manufacturing Location: China
  • Estimated EOL Date: 2029
