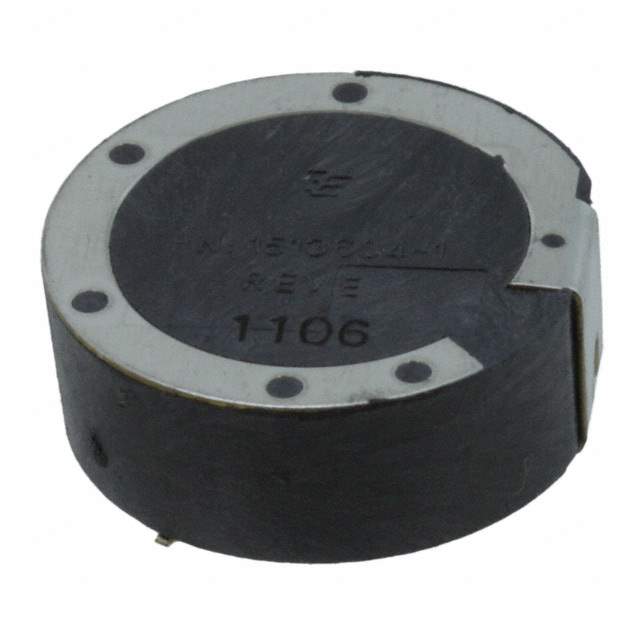

1513634-1 Real Image
Same model may have multiple batches, images only for reference.

1513634-1

Part No 1513634-1
Manufacturer TE Connectivity
Catalog RF Antennas
Description RF ANT 1.575GHZ PUCK SOLDER SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories RF/IF and RFID
Estimated Pruduction Lead Time 7 Weeks
Features 1.575GHz GPS Puck RF Antenna 1.565GHz ~ 1.585GHz 0dBi Solder Surface Mount
Manufacturer TE Connectivity
Package Reel - TR
Mounting Surface Mount
Family Name 151363
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8529.10.9100
Other Part Number 2266-1513634-1TR, -1513634-1-SI, A107432CT, 1513634-1-ND, -1513634-1-LSI, A107432TR, A107432DKR
Quantity per package 450
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905353-1513634-1
Ultra Librarian 3D Model Ultra Librarian 1513634-1 CAD Model

Description

The TE Connectivity 905353-1513634-1 is a high popularity RF/IF and RFID product that is designed to be used as a 1.575GHz GPS Puck RF Antenna.

  • Frequency: 1.575GHz
  • Operating Frequency: 1.565GHz to 1.585GHz
  • Gain: 0dBi
  • Termination: Solder Surface Mount
  • Packaging: Reel - TR
  • Mounting Type: Surface Mountable
  • Family: 151363
  • ECCN: EAR99
  • Pieces per Package: 450
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 7 weeks
  • REACH Status: Vendor undefined
  • HTSUS: 8529.10.9100
  • Other Part Numbers: 2266-1513634-1TR, -1513634-1-SI, A107432CT, 1513634-1-ND, -1513634-1-LSI, A107432TR, A107432DKR
