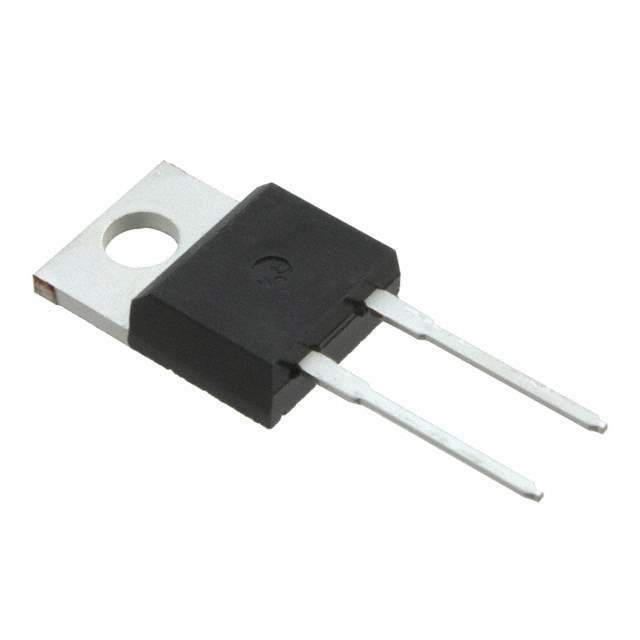

GD30MPS06A GeneSiC Semiconductor
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1307227-GD30MPS06A
Category Discrete Semiconductor Products Diodes Rectifiers Single Diodes
Mfr GeneSiC Semiconductor
Packaging Tube
Part Status Active
Technology SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) 650 V
Current - Average Rectified (Io) 30A
Speed No Recovery Time > 500mA (Io)
Reverse Recovery Time (trr) 0 ns
Mounting Type Through Hole
Ultra Librarian 3D Model Ultra Librarian GD30MPS06A CAD Model

Description

  • Gen4 Thin Chip Technology for Low VF
  • Superior Figure of Merit Qc/lF
  • 100% Avalanche Tested
  • Enhanced Surge Current Robustness
  • Temperature Independent Fast Switching
  • Low Thermal Resistance
  • Positive Temperature Coeffcient of VF
  • High dV/dt Ruggedness
